Part Image

VPP36-820 - Triad Magnetics

Description: Power Transformers POWER XFMR 36.0Vct@0.820A UL/CSA/VDE PCB MOUNT/VPP36-820

Download ECAD Model

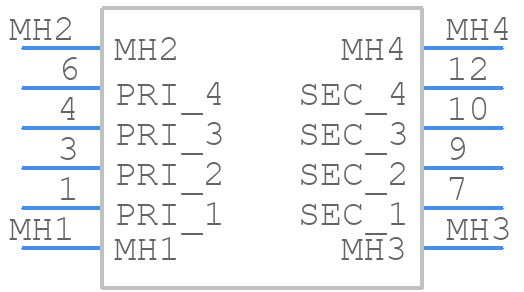

Schematic symbol is unavailable for download
PCB footprint is unavailable for download
3D model is unavailable for download

PCB Footprints

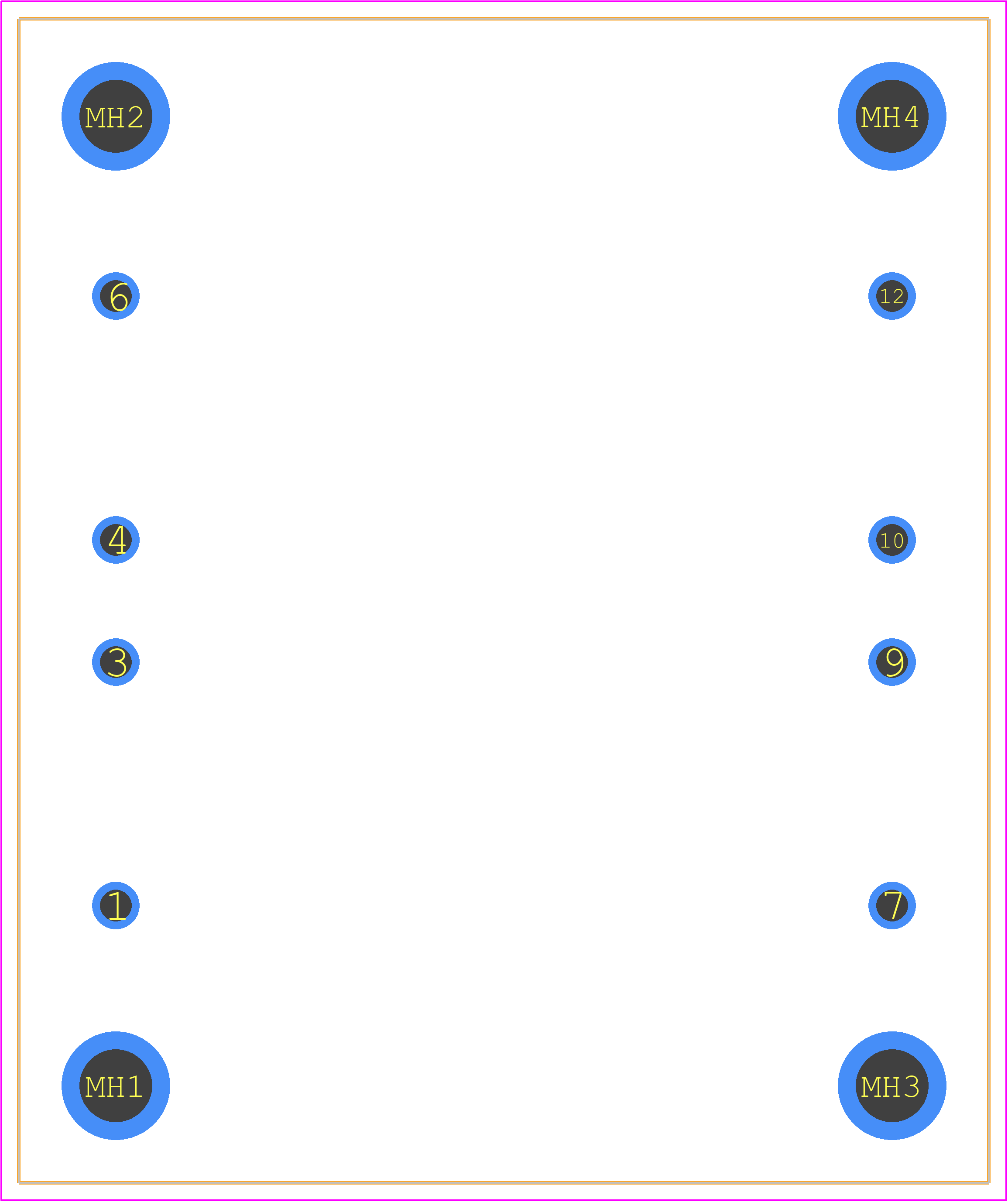

VPP36-820 - Triad Magnetics PCB footprint - Other - Other - VPP36-820-1
click to zoom

3D Models

VPP36-820 - Triad Magnetics  - 3D model - Other - VPP36-820-1
click to zoom

VPP36-820 Details

  • Manufacturer Part Number:


  • Pbfree Code:


  • Rohs Code:


  • Part Life Cycle Code:


  • Package Description:


  • Reach Compliance Code:


  • ECCN Code:


  • HTS Code:


  • Manufacturer:

    Triad Magnetics

  • Risk Rank:


  • Application:


  • Approvals:


  • Center Tap Feature 1:


  • Center Tap Feature 2:


  • Height:

    39.67 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4000 V

  • Length:

    66.67 mm

  • Mounting Feature:


  • Number of Primary Winding:


  • Number of Secondary Winding:


  • Output Current 1:

    1.64 A

  • Output Current 2:

    1.64 A

  • Output Voltage 1:

    18 V

  • Output Voltage 2:

    18 V

  • Physical Dimension:

    L66.67XB55.55XH39.67 (mm)

  • Primary Rating:

    DUAL 115V

  • Surface Mount:


  • Transformer Type:


  • VA Rating:

    30 VA

  • Width:

    55.55 mm

Risk Rank: Design Risk

VPP36-820 — Triad Magnetics
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Expert Contribution
System Verified
Community Approved

VPP36-820 Overview

Use the download button to access the VPP36-820 schematic symbol, PCB footprint, and 3D model.
VPP36-820 by Triad Magnetics has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like VPP36, or try a keyword search, such as Power/Mains Transformers
