VPT100-2812S - VPT

Description: HIGH RELIABILITY COTS DC-DC CONVERTERS, Voltage: 50 Volts for 1 second, 100MΩ, -55 °C to 100 °C

Download VPT100-2812S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

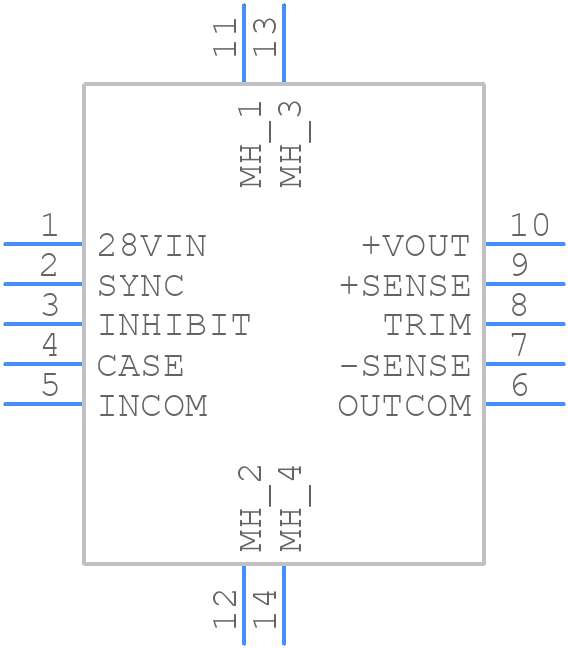

VPT100-2812S - VPT - PCB symbol
click to zoom
PCB Footprints

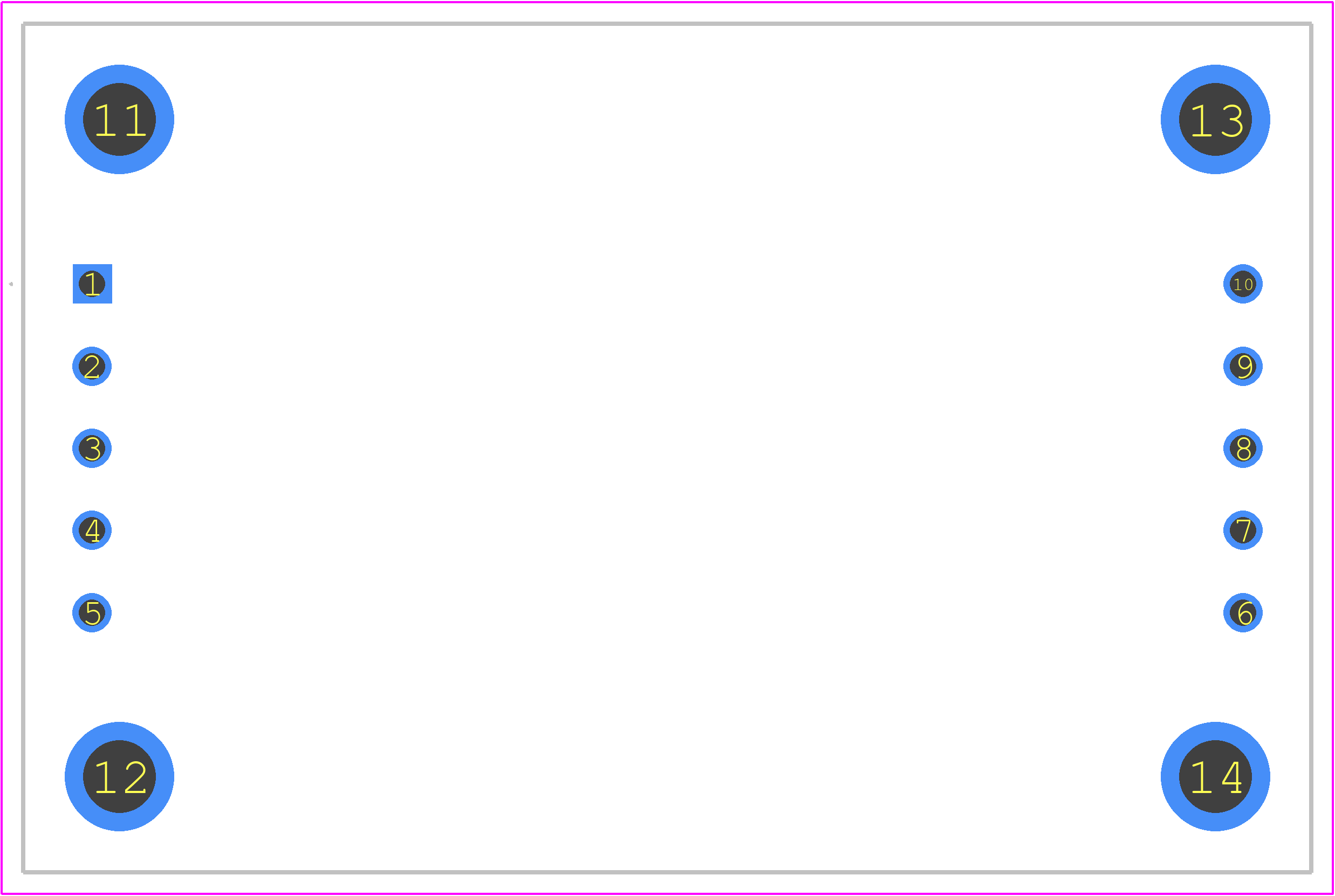

VPT100-2812S - VPT PCB footprint - Other - Other - VPT100-2812S-1
click to zoom
3D Models
VPT100-2812S - VPT - 3D model - Other - VPT100-2812S-1
click to zoom

VPT100-2812S Details

  • Manufacturer Part Number:

    VPT100-2812S

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-10

  • Pin Count:

    10

  • Country Of Origin:

    Taiwan, USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    VPT Inc

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VPT100-2812S Overview

Use the download button to access the VPT100-2812S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VPT10, or try a keyword search, such as Power Supply Modules
