VR05-PCB - Custom Connector

Description: Relay Socket, Automotive Relay, 5 Pin Automotive, PC Board, Thermoplastic | Custom Connector VR05-PCB

Download VR05-PCB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VR05-PCB - Custom Connector - PCB symbol
click to zoom
PCB Footprints

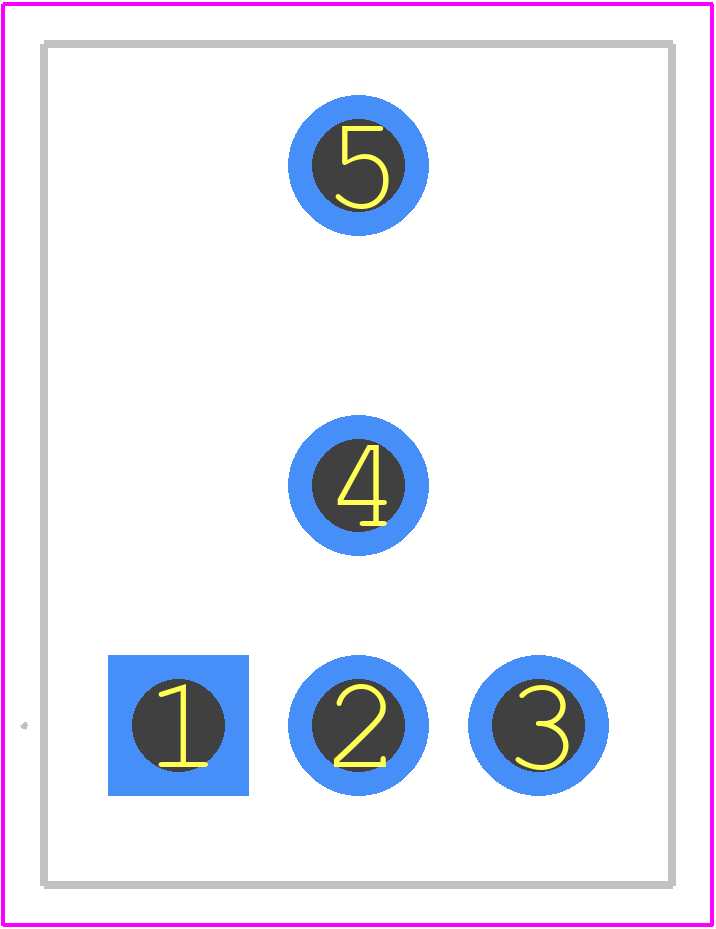

VR05-PCB - Custom Connector PCB footprint - Other - Other - VR05-PCB-5
click to zoom
3D Models
VR05-PCB - Custom Connector - 3D model - Other - VR05-PCB-5
click to zoom

VR05-PCB Details

  • Manufacturer Part Number:

    VR05-PCB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Custom Connector Corporation

  • Device Socket Type:

    RELAY SOCKET

  • Device Type Used On:

    RELAY

  • Housing Material:

    POLYETHYLENE

  • Number of Contacts:

    5

VR05-PCB Frequently Asked Questions (FAQs)

  • The recommended PCB thickness for the VR05-PCB connector is 1.6 mm ± 0.1 mm.
  • Yes, the VR05-PCB connector is designed to withstand high-vibration environments and is suitable for use in applications such as industrial control systems, automotive systems, and aerospace systems.
  • The operating temperature range for the VR05-PCB connector is -40°C to 125°C.
  • Yes, the VR05-PCB connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The mating cycle life of the VR05-PCB connector is 500 cycles minimum.
