VS-15ETH03SHM3 footprint, schematic symbol and 3D model by Vishay

Symbol

click to zoom

PCB Footprints

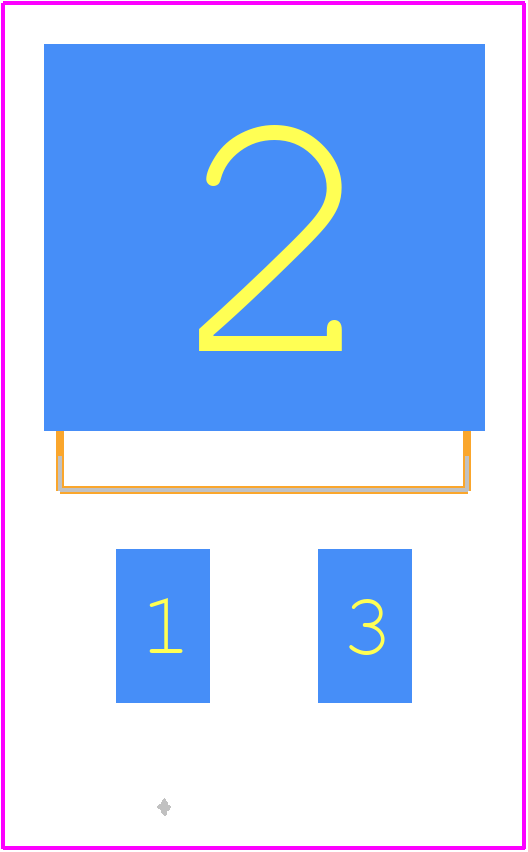

VS-15ETH03SHM3 - Vishay PCB footprint - Other - Other - VS-15ETH03SHM3-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VS-15ETH03SHM3
Part Number VS-15ETH03SHM3
Manufacturer Vishay
Pin Count 3
Part Category Diode
Package Category Other
Footprint Name Other - VS-15ETH03SHM3-2
Released Date Dec 16, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

VS-15ETH03SHM3 Details

Manufacturer Part Number:
VS-15ETH03SHM3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
D2PAK-3/2
ECCN Code:
EAR99
HTS Code:
8541.10.00.80
Factory Lead Time:
10 Weeks
Date Of Intro:
2018-06-17
Manufacturer:
Vishay Intertechnologies
YTEOL:
6.55
Additional Feature:
FREE WHEELING DIODE, LOW LEAKAGE CURRENT, SNUBBER DIODE
Application:
HYPER FAST RECOVERY
Breakdown Voltage-Min:
300 V
Case Connection:
CATHODE
Configuration:
SINGLE
Diode Element Material:
SILICON
Diode Type:
RECTIFIER DIODE
Forward Voltage-Max (VF):
1.25 V
JEDEC-95 Code:
TO-263AB
JESD-30 Code:
R-PSSO-G2
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Non-rep Pk Forward Current-Max:
140 A
Number of Elements:
1
Number of Phases:
1
Number of Terminals:
2
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Output Current-Max:
15 A
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
245
Reference Standard:
AEC-Q101
Rep Pk Reverse Voltage-Max:
300 V
Reverse Current-Max:
40 µA
Reverse Recovery Time-Max:
0.04 µs
Reverse Test Voltage:
300 V
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30

VS-15ETH03SHM3 Frequently Asked Questions (FAQs)

Vishay provides a recommended PCB layout and land pattern in their application note AN42171, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and minimize thermal resistance.
The VS-15ETH03SHM3 comes with a pre-applied TIM. However, if you need to rework or replace the TIM, Vishay recommends using a thermal interface material with a thermal conductivity of at least 1 W/m-K. Follow the manufacturer's instructions for application and curing.
Vishay recommends derating the maximum voltage by 10% to ensure reliable operation. For example, if the maximum voltage rating is 15 V, the derated voltage would be 13.5 V.
While the VS-15ETH03SHM3 is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz. However, you should carefully evaluate the device's performance and consider the effects of parasitic inductance and capacitance.
To ensure reliability, follow Vishay's recommended operating temperature range and derate the device's power rating accordingly. Also, consider using a heat sink or thermal management system to keep the junction temperature below 150°C.
