VS-GBPC2502W - Vishay

Description: Vishay VS-GBPC2502W, Bridge Rectifier, 25A 200V, 4-Pin GBPC-W

Download VS-GBPC2502W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

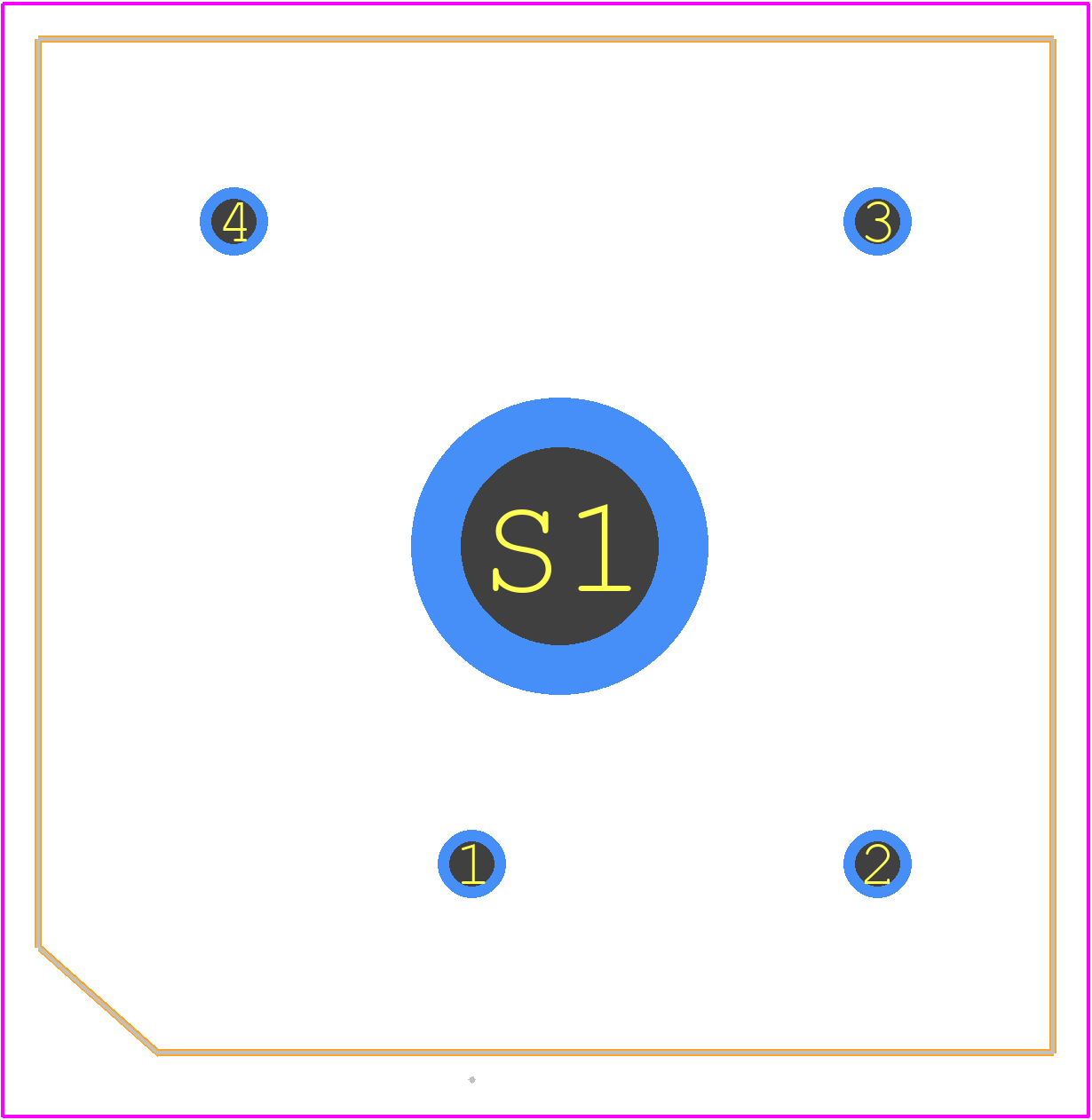

VS-GBPC2502W - Vishay PCB footprint - Other - Other - GBPC-W_5
click to zoom
3D Models
VS-GBPC2502W - Vishay  - 3D model - Other - GBPC-W_5
click to zoom

VS-GBPC2502W Details

  • Manufacturer Part Number:

    VS-GBPC2502W

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.85

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-PUFM-W4

  • JESD-609 Code:

    e1

  • Non-rep Pk Forward Current-Max:

    420 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    25 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    200 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

VS-GBPC2502W Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to use a large copper pad under the device, connected to a solid ground plane. This helps to dissipate heat efficiently. Additionally, keeping the PCB layout compact and avoiding thermal vias under the device can also improve thermal performance.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and use a gentle touch to avoid applying excessive pressure. Also, make sure the PCB is clean and free of oxidation.
  • The maximum allowable voltage derating for the VS-GBPC2502W is typically 10% to 15% below the maximum rated voltage. However, it's recommended to consult with the manufacturer or a qualified engineer to determine the specific derating requirements for your application.
  • While the VS-GBPC2502W is designed for general-purpose use, it may not be suitable for high-frequency switching applications due to its relatively high capacitance and inductance. For high-frequency applications, consider using a device specifically designed for high-frequency switching, such as a Schottky diode or a fast-recovery diode.
  • To prevent electrostatic discharge (ESD) damage, handle the VS-GBPC2502W with ESD-safe materials, such as ESD-safe workbenches, wrist straps, and tweezers. Also, ensure that the PCB and components are properly grounded during assembly and testing.
