VS-HFA04TB60-M3 footprint, schematic symbol and 3D model by Vishay

Symbol

click to zoom

PCB Footprints

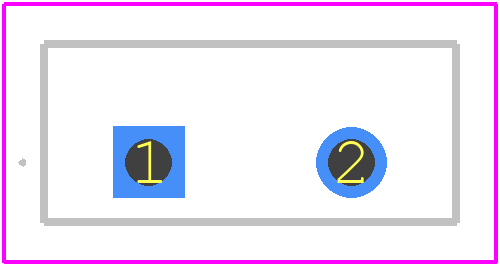

VS-HFA04TB60-M3 - Vishay PCB footprint - Other - Other - TO-220AC 2L_2026-1.2

click to zoom

3D Models

VS-HFA04TB60-M3 - Vishay - 3D model - Other - TO-220AC 2L_2026-1.2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VS-HFA04TB60-M3
Part Number VS-HFA04TB60-M3
Manufacturer Vishay
Pin Count 2
Part Category Diode
Package Category Other
Footprint Name Other - TO-220AC 2L_2026-1.2
Released Date Oct 7, 2020
Last Modified Date Jan 24, 2026 4:54 AM UTC
Pinout / Pin List Click Here (Member Only)

VS-HFA04TB60-M3 Details

Manufacturer Part Number:
VS-HFA04TB60-M3
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8541.10.00.80
Date Of Intro:
2018-02-15
Manufacturer:
Vishay Intertechnologies
YTEOL:
5.42
Additional Feature:
LOW NOISE, PD-CASE
Application:
EFFICIENCY
Case Connection:
CATHODE
Configuration:
SINGLE
Diode Element Material:
SILICON
Diode Type:
RECTIFIER DIODE
Forward Voltage-Max (VF):
2.2 V
JEDEC-95 Code:
TO-220AC
JESD-30 Code:
R-PSFM-T2
Non-rep Pk Forward Current-Max:
25 A
Number of Elements:
1
Number of Phases:
1
Number of Terminals:
2
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Output Current-Max:
4 A
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Power Dissipation-Max:
25 W
Rep Pk Reverse Voltage-Max:
600 V
Reverse Current-Max:
3 µA
Reverse Recovery Time-Max:
0.042 µs
Surface Mount:
NO
Terminal Form:
THROUGH-HOLE
Terminal Position:
SINGLE

VS-HFA04TB60-M3 Frequently Asked Questions (FAQs)

The recommended PCB footprint for the VS-HFA04TB60-M3 is a rectangle with dimensions of 1.5 mm x 2.5 mm, with a thermal pad in the center. The datasheet provides a recommended land pattern, but it's essential to consult the application note for detailed guidelines.
To ensure reliability in high-temperature applications, it's crucial to follow the recommended derating curves and thermal management guidelines provided in the datasheet. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature.
The maximum allowed voltage transient for the VS-HFA04TB60-M3 is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to limit voltage transients to 10% of the maximum rated voltage to ensure device reliability.
Yes, you can use multiple VS-HFA04TB60-M3 devices in parallel to increase current handling. However, it's essential to ensure that the devices are properly matched and that the current sharing is balanced to avoid overheating and reduce reliability.
The VS-HFA04TB60-M3 has an internal ESD protection diode, but the exact ESD protection level is not specified in the datasheet. As a general guideline, it's recommended to follow standard ESD handling precautions when handling the device.

Trust Checks

Community Provided

System Verified

Community Approved

VS-HFA04TB60-M3 Overview

Use the download button to access the VS-HFA04TB60-M3 schematic symbol, PCB footprint, and 3D model.
