VS-HFA15TB60-M3 - Vishay

Description: Rectifier Diode Switching 15A 60ns 2-Pin(2+Tab) TO-220AC Tube

Download VS-HFA15TB60-M3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VS-HFA15TB60-M3 - Vishay - PCB symbol
click to zoom
PCB Footprints

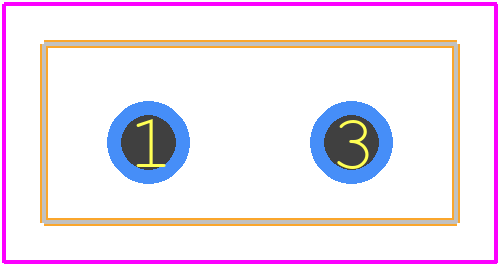

VS-HFA15TB60-M3 - Vishay PCB footprint - Other - Other - VS-HFA15TB60-M3-3
click to zoom
3D Models
VS-HFA15TB60-M3 - Vishay - 3D model - Other - VS-HFA15TB60-M3-3
click to zoom

VS-HFA15TB60-M3 Details

  • Manufacturer Part Number:

    VS-HFA15TB60-M3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2018-02-15

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    LOW NOISE, PD-CASE

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    2 V

  • JEDEC-95 Code:

    TO-220AC

  • JESD-30 Code:

    R-PSFM-T2

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Power Dissipation-Max:

    74 W

  • Rep Pk Reverse Voltage-Max:

    600 V

  • Reverse Current-Max:

    10 µA

  • Reverse Recovery Time-Max:

    0.06 µs

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

VS-HFA15TB60-M3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the VS-HFA15TB60-M3 is a pad size of 1.5 mm x 1.5 mm with a 0.5 mm spacing between pads. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
  • To ensure reliability in high-temperature applications, it's crucial to follow the recommended derating curves and thermal management guidelines provided in the datasheet. Additionally, ensure proper heat sinking, and consider using a thermal interface material to improve heat transfer.
  • The maximum allowable voltage transient for the VS-HFA15TB60-M3 is 60 V for a duration of 10 ms. Exceeding this limit may damage the device. It's essential to ensure that the device is protected from voltage transients and spikes in the application.
  • Yes, you can use multiple VS-HFA15TB60-M3 devices in parallel to increase current handling. However, it's essential to ensure that the devices are properly matched and that the current sharing is balanced to prevent overheating and reduce reliability.
  • The recommended storage condition for the VS-HFA15TB60-M3 is in a dry, cool place with a temperature range of -40°C to 30°C and humidity below 60%. Avoid storing the devices in direct sunlight or near heat sources.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VS-HFA15TB60-M3 Overview

Use the download button to access the VS-HFA15TB60-M3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VS-HF, or try a keyword search, such as Rectifier Diodes
