VSC7420XJG-04 - Microchip

Description: Ethernet ICs 10 Port Unmanaged L2 Switch with 8 Integrated Cu PHYs (Ind. Temp)

Download VSC7420XJG-04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VSC7420XJG-04 - Microchip - PCB symbol
click to zoom
PCB Footprints

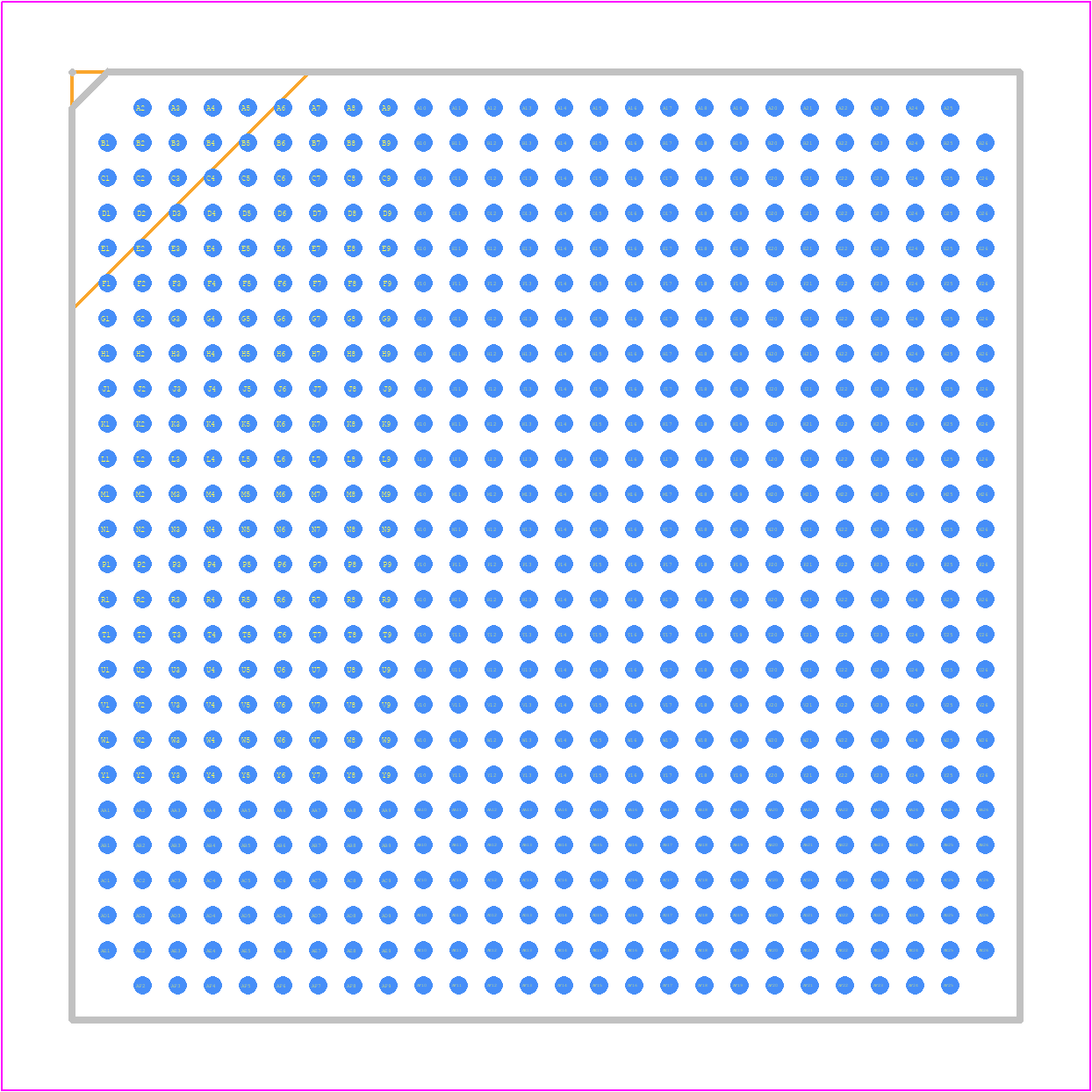

VSC7420XJG-04 - Microchip PCB footprint - BGA - BGA - VSC7420XJG-04
click to zoom
3D Models
VSC7420XJG-04 - Microchip - 3D model - BGA - VSC7420XJG-04
click to zoom

VSC7420XJG-04 Details

  • Manufacturer Part Number:

    VSC7420XJG-04

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    672

  • Manufacturer Package Code:

    HSBGA-672

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2019-10-10

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    S-PBGA-B672

  • JESD-609 Code:

    e1

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    672

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA672,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.44 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET SWITCH

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    27 mm

VSC7420XJG-04 Frequently Asked Questions (FAQs)

  • A good PCB layout for the VSC7420XJG-04 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliable operation of the VSC7420XJG-04 in high-temperature environments, it is essential to provide adequate heat sinking, ensure good airflow, and follow the recommended thermal design guidelines. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • When selecting capacitors for the VSC7420XJG-04, consider the capacitance value, voltage rating, and equivalent series resistance (ESR). The capacitors should be rated for the maximum voltage and current of the application, and the ESR should be low enough to minimize power loss and ensure stable operation.
  • To troubleshoot issues with the VSC7420XJG-04, start by reviewing the device's datasheet and application notes, and checking the PCB layout and component selection. Use oscilloscopes and logic analyzers to monitor the device's signals and identify the source of the issue. Consult Microchip's technical support resources and online forums for additional guidance and troubleshooting tips.
  • The VSC7420XJG-04's power-on reset (POR) and brown-out reset (BOR) features ensure that the device resets properly during power-up and power-down sequences. System designers should consider these features when designing their power management and reset circuits, and ensure that the device is properly reset during power-up and power-down sequences.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VSC7420XJG-04 Overview

Use the download button to access the VSC7420XJG-04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSC74, or try a keyword search, such as Telecom Switching Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
