- Part Number VSC8512XJG-02
- Manufacturer Microchip
- Pin Count 672
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - BGA-672
- Released Date Nov 18, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
VSC8512XJG-02 Details
-
Manufacturer Part Number:
VSC8512XJG-02
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
672
-
Manufacturer Package Code:
HSBGA-672
-
Country Of Origin:
Taiwan
-
ECCN Code:
5A991.C
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
10 Weeks
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
19
VSC8512XJG-02 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and crosstalk.
-
Use a heat sink to dissipate heat, ensure good airflow, and consider using a thermal interface material to improve heat transfer. Also, ensure that the device is operated within the recommended temperature range.
-
Power up the device in the following sequence: VCC, then AVCC, then DVCC. Ensure that the power supplies are stable and within the recommended voltage range before applying clock signals.
-
Use a protocol analyzer to capture and analyze Ethernet packets. Check the link status, packet transmission, and reception. Verify that the MAC and PHY are properly configured and that the clock signals are stable.
-
Use 1% resistors with a value of 50 ohms for the RMII interface. Ensure that the resistors are placed close to the device pins to minimize signal reflections.
Trust Checks
Community Provided
System Verified
Community Approved
VSC8512XJG-02 Overview

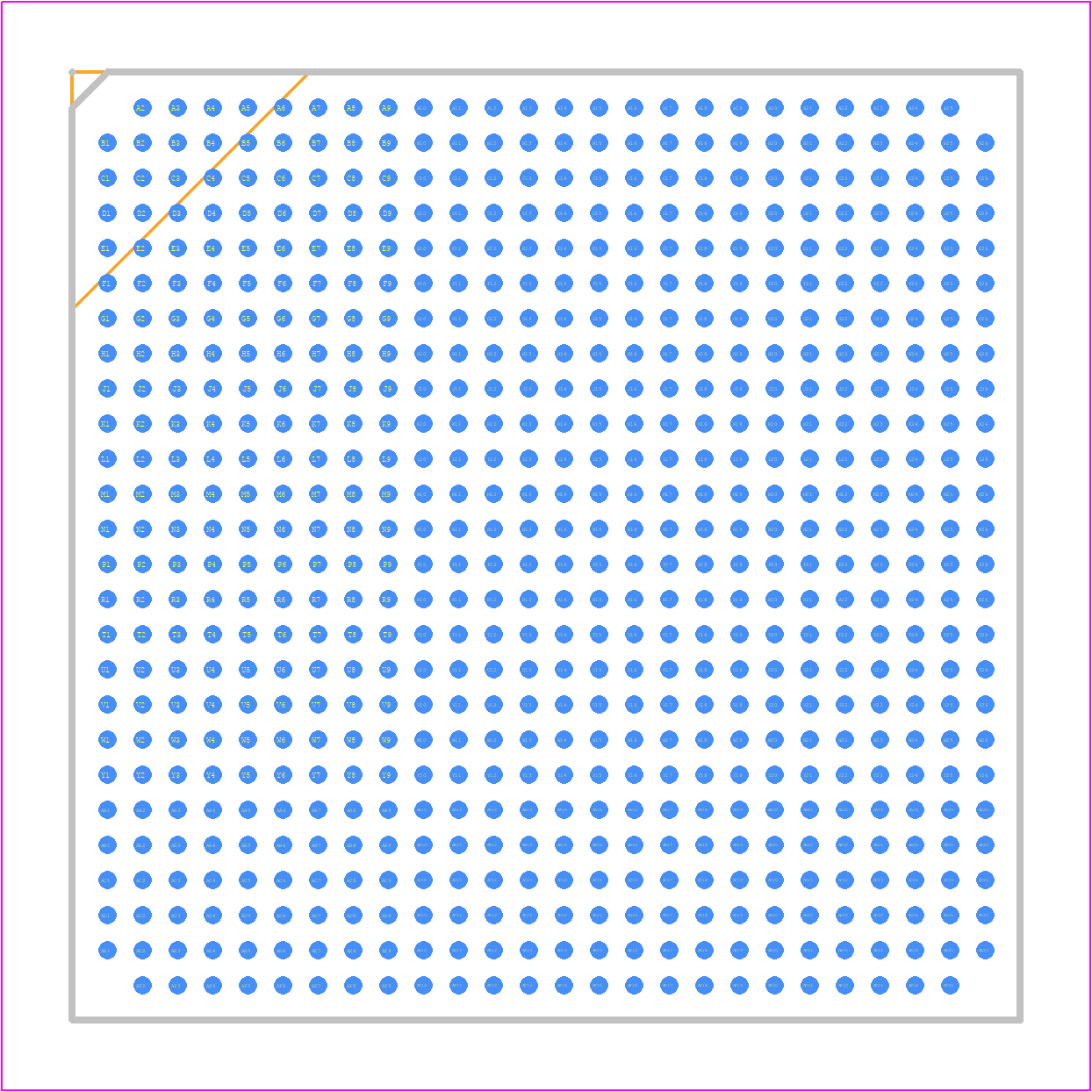

Use the download button to access the VSC8512XJG-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSC85,
or try a keyword search, such as Network Interfaces
