VSC8531XMW-05 - Microchip

Description: PHY 1-CH 10Mbps/100Mbps/1Gbps 1V/2.5V 48-Pin QFN EP Tray

Download VSC8531XMW-05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

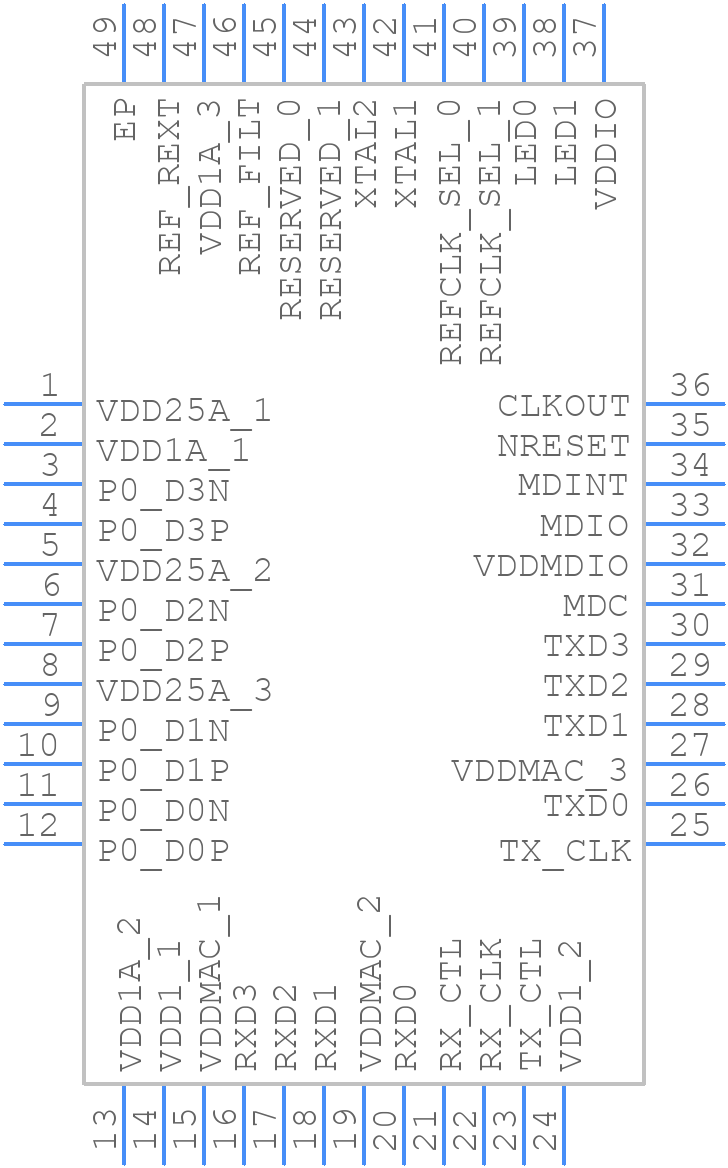

VSC8531XMW-05 - Microchip - PCB symbol
click to zoom
PCB Footprints
VSC8531XMW-05 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-pin QFN_2022
click to zoom
3D Models
VSC8531XMW-05 - Microchip - 3D model - Quad Flat No-Lead - 48-pin QFN_2022
click to zoom

VSC8531XMW-05 Details

  • Manufacturer Part Number:

    VSC8531XMW-05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

VSC8531XMW-05 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signals separate, and use a common mode filter to reduce EMI.
  • Use a heat sink to dissipate heat, ensure good airflow, and consider using a thermal interface material to improve heat transfer. Also, ensure that the device is operated within the recommended temperature range.
  • Power up the device in the following sequence: VCC, then AVCC, then DVCC. Ensure that the power supplies are stable and within the recommended voltage range before applying clock signals.
  • Use a protocol analyzer to capture and analyze the traffic. Check the device's registers and counters to identify the source of the issue. Verify that the device is properly configured and that the firmware is up-to-date.
  • Yes, the VSC8531XMW-05 can be used in a redundant or failover configuration. Use a redundant power supply and ensure that the devices are properly synchronized. Implement a failover mechanism to switch between devices in case of failure.
