VSC8552XKS-02 - Microchip

Description: PHY 2-CH 10Mbps/100Mbps/1Gbps 1V/2.5V 256-Pin Tray Ethernet ICs Dual Port Gbit Dual Media R/SGMII Phy

Download VSC8552XKS-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VSC8552XKS-02 - Microchip - PCB symbol
click to zoom
PCB Footprints

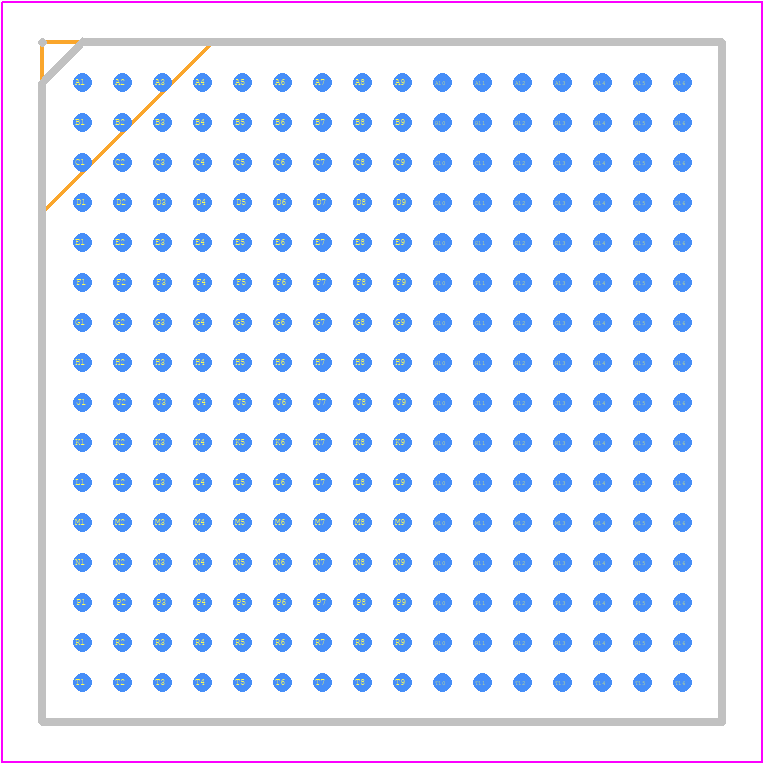

VSC8552XKS-02 - Microchip PCB footprint - BGA - BGA - 256 - BGA
click to zoom
3D Models
VSC8552XKS-02 - Microchip - 3D model - BGA - 256 - BGA
click to zoom

VSC8552XKS-02 Details

  • Manufacturer Part Number:

    VSC8552XKS-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    256

  • Manufacturer Package Code:

    PBGA-256

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    256

  • Number of Transceivers:

    2

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.8 mm

  • Supply Current-Max:

    755 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

VSC8552XKS-02 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and crosstalk.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended thermal design guidelines. Also, consider using a heat sink with a thermal conductivity of at least 1 W/m-K.
  • The maximum cable length supported by the VSC8552XKS-02 is 100 meters, assuming a Category 5e or higher cable. However, this can vary depending on the specific application and environment.
  • Yes, the VSC8552XKS-02 can be used in redundant or backup systems. However, ensure that the redundant system is properly synchronized and that the switch-over mechanism is designed to minimize downtime and data loss.
  • Use a logic analyzer or oscilloscope to capture and analyze the signal waveforms. Check the power supply voltage, clock signal, and data signals for any anomalies. Also, consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VSC8552XKS-02 Overview

Use the download button to access the VSC8552XKS-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSC85, or try a keyword search, such as Network Interfaces
