VSC8572XKS-05 - Microchip

Description: Ethernet ICs 2 Port GbE Cu/Fiber PHY with SGMII/RGMII & IEEE 1588 (Ind. Temp)

Download VSC8572XKS-05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VSC8572XKS-05 - Microchip - PCB symbol
click to zoom
PCB Footprints

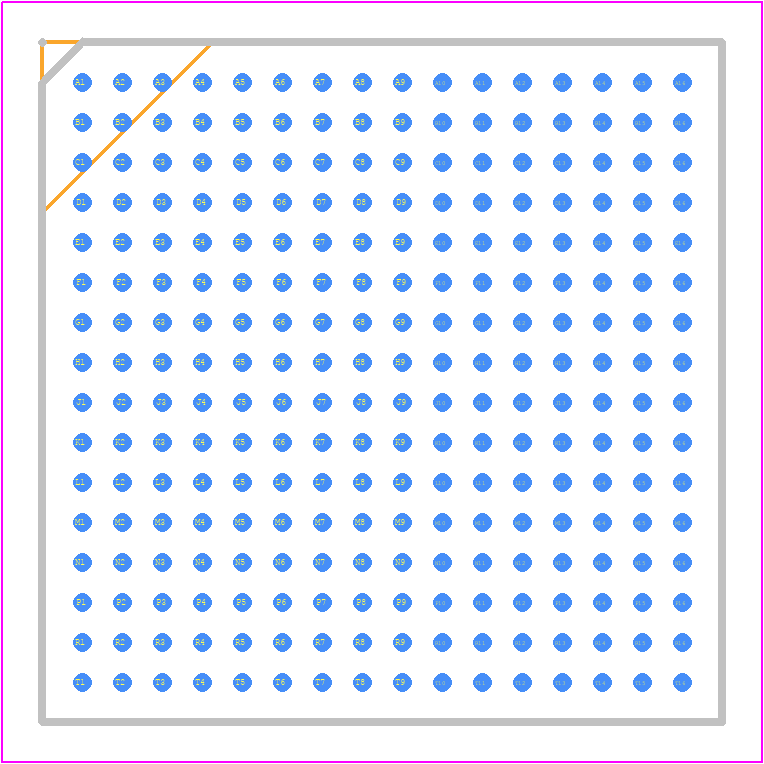

VSC8572XKS-05 - Microchip PCB footprint - BGA - BGA - 256 - BGA
click to zoom
3D Models
VSC8572XKS-05 - Microchip - 3D model - BGA - 256 - BGA
click to zoom

VSC8572XKS-05 Details

  • Manufacturer Part Number:

    VSC8572XKS-05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA, BGA256,16X16,40

  • Pin Count:

    256

  • Manufacturer Package Code:

    PBGA-256

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PBGA-B256

  • Length:

    17 mm

  • Number of Functions:

    1

  • Number of Terminals:

    256

  • Number of Transceivers:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    1.8 mm

  • Supply Current-Max:

    800 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

VSC8572XKS-05 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a ferrite bead to reduce EMI.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device. Consider using a thermal interface material to improve heat transfer. Monitor the device's junction temperature and adjust the operating conditions accordingly.
  • Use level shifters or voltage translators to ensure signal integrity between different voltage domains. Ensure that the VSC8572XKS-05 is powered from a stable voltage source. Consider using a voltage regulator or a power management IC to regulate the voltage supply.
  • Use a logic analyzer or an oscilloscope to capture and analyze the signal waveforms. Check the power supply voltage and ensure it is within the recommended range. Verify that the device is properly configured and that the firmware is up-to-date. Consult the datasheet and application notes for troubleshooting guidelines.
  • Use controlled impedance traces and terminations to minimize signal reflections and ringing. Ensure that the signal traces are short and well-shielded. Use a signal integrity analysis tool to simulate and optimize the signal transmission.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VSC8572XKS-05 Overview

Use the download button to access the VSC8572XKS-05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSC85, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
