A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a decoupling capacitor (e.g., 0.1uF) close to the VCC pin.
Use a heat sink or thermal pad to dissipate heat. Ensure good airflow around the device. Consider using a thermal interface material (e.g., thermal tape or thermal grease) to improve heat transfer.
The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the VSC8574XKS-01 supports cable lengths up to 100 meters for 10Gbps Ethernet and up to 40 meters for 25Gbps Ethernet.
Use a logic analyzer or oscilloscope to capture and analyze the signal waveforms. Check the device's register settings and configuration. Verify that the device is properly powered and that the PCB layout is correct.
Yes, the VSC8574XKS-01 supports redundant or failover configurations. Use multiple devices in parallel, and implement a redundancy scheme (e.g., spanning tree protocol) to ensure seamless failover in case of device failure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VSC8574XKS-01 Overview

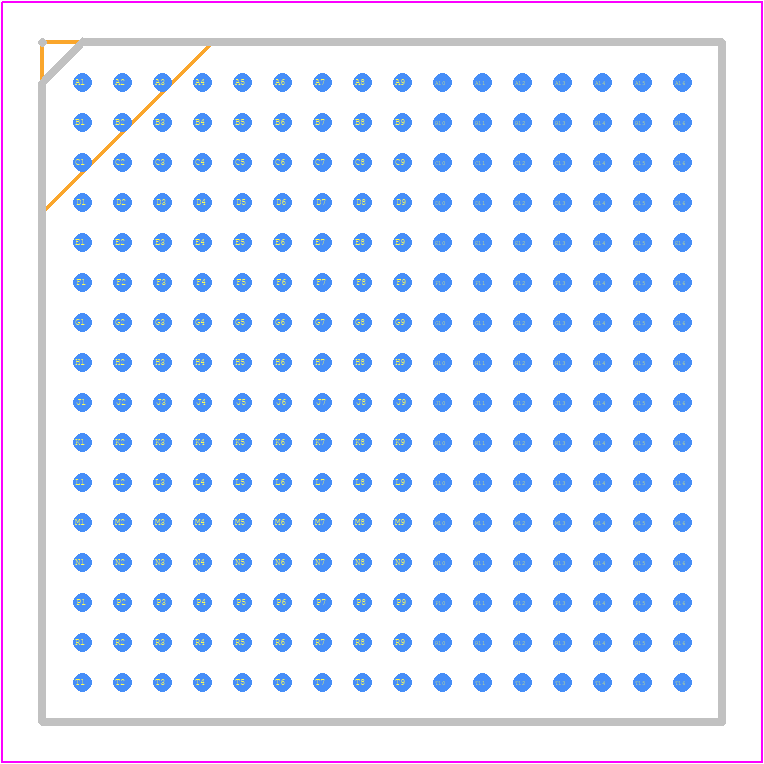

Use the download button to access the VSC8574XKS-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSC85,
or try a keyword search, such as Network Interfaces
