VSC8574XKS-02 - Microchip

Description: Quad-Port 10/100/1000BASE-T PHY with Synchronous Ethernet, IEEE 1588, and QSGMII/SGMII MAC

Download VSC8574XKS-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VSC8574XKS-02 - Microchip - PCB symbol
click to zoom
PCB Footprints

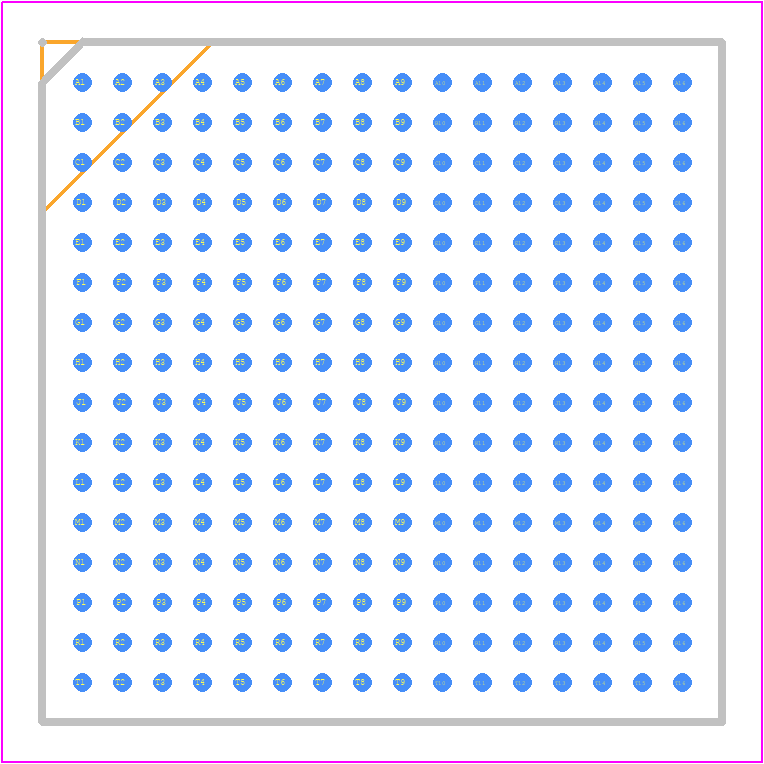

VSC8574XKS-02 - Microchip PCB footprint - BGA - BGA - 256 - BGA
click to zoom
3D Models
VSC8574XKS-02 - Microchip - 3D model - BGA - 256 - BGA
click to zoom

VSC8574XKS-02 Details

  • Manufacturer Part Number:

    VSC8574XKS-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    256

  • Manufacturer Package Code:

    PBGA-256

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    256

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.8 mm

  • Supply Current-Max:

    980 mA

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

VSC8574XKS-02 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a ferrite bead to reduce EMI.
  • Use a thermal management strategy such as heat sinks, thermal vias, or thermal pads to keep the junction temperature below 125°C. Ensure good airflow and avoid blocking airflow around the device.
  • Use a low-ESR capacitor (e.g., 10uF) close to the device's power pins. Ensure a clean and stable power supply with minimal noise and ripple. Use a voltage regulator or a power management IC to regulate the voltage.
  • Use a logic analyzer or an oscilloscope to monitor the device's signals. Check the device's configuration and programming. Verify the power supply and clock signals. Consult the datasheet and application notes for troubleshooting guides.
  • Use a shielded enclosure or a metal can to reduce EMI. Implement EMI filters or common mode chokes on the I/O lines. Ensure good grounding and use a low-pass filter on the power supply lines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VSC8574XKS-02 Overview

Use the download button to access the VSC8574XKS-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSC85, or try a keyword search, such as Network Interfaces
