For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to use thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, ensure a minimum of 10 mm clearance around the module for airflow and heat dissipation.
To ensure EMC, follow proper PCB layout and grounding techniques, use a metal enclosure, and ensure a minimum of 3 mm clearance between the module and any surrounding metal components. Additionally, use EMI filters and shielding if necessary.
The derating curve for the VSK-S5-5UA is available upon request from CUI Inc. In general, the output power will decrease as the ambient temperature increases. For every 10°C increase above 25°C, the output power will decrease by approximately 2.5%.
Yes, the VSK-S5-5UA can be used in a redundant or parallel configuration, but it requires careful consideration of the system design and thermal management. Consult with CUI Inc or a qualified engineer to ensure proper implementation.
The VSK-S5-5UA has a calculated MTBF of 1.5 million hours at 25°C, and a reliability rating of 0.05 FIT (failures per billion hours) at 40°C. Please consult the datasheet or contact CUI Inc for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VSK-S5-5UA Overview

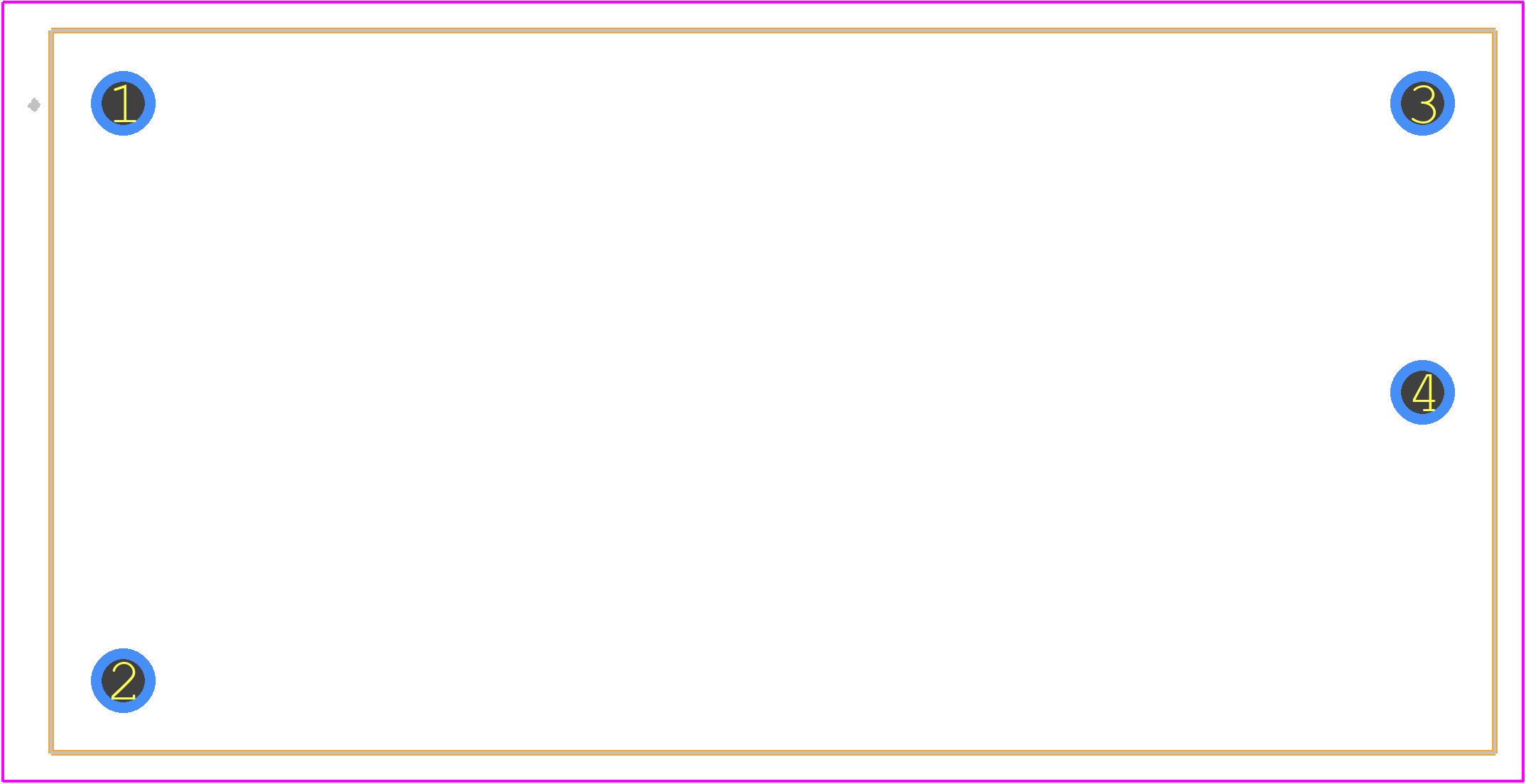

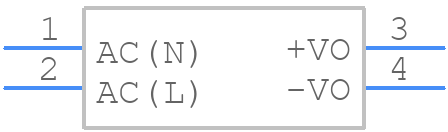

Use the download button to access the VSK-S5-5UA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSK-S,
or try a keyword search, such as Power Supply Modules
