VSSR2003330JTF - Vishay

Description: 33 Ohm ±5% 100mW Power Per Element Isolated 10 Resistor Network/Array ±100ppm/°C 20-SSOP (0.154", 3.90mm Width)

Download VSSR2003330JTF Model

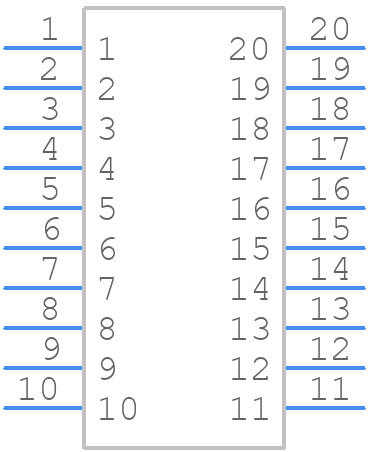

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
VSSR2003330JTF - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - VSSR-20
click to zoom
3D Models
VSSR2003330JTF - Vishay  - 3D model - Small Outline Packages - VSSR-20
click to zoom

VSSR2003330JTF Details

  • Manufacturer Part Number:

    VSSR2003330JTF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP; QSOP, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.20

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.9

  • Construction:

    Molded Case

  • Element Power Dissipation:

    0.1 W

  • First Element Resistance:

    33 Ω

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    10

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    1.63 mm

  • Package Length:

    8.66 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.91 mm

  • Packing Method:

    TR

  • Rated Power Dissipation (P):

    1.2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    33 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    1534

  • Surface Mount:

    YES

  • Technology:

    THIN FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Shape:

    GULL WING

  • Tolerance:

    5%

  • Working Voltage:

    50 V

VSSR2003330JTF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the VSSR2003330JTF is a rectangular pad with dimensions of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
  • To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a solder flux to the pads. The recommended soldering time is 2-3 seconds per pad.
  • The maximum operating temperature range for the VSSR2003330JTF is -55°C to 150°C, with a derating of 1.33 mΩ/°C above 25°C.
  • Yes, the VSSR2003330JTF is suitable for high-frequency applications up to 1 GHz, but it's essential to consider the parasitic inductance and capacitance of the component and the PCB layout.
  • Store the VSSR2003330JTF in a dry, cool place, away from direct sunlight and moisture. During shipping, use anti-static packaging and handle the components by the body, not the leads, to prevent damage.
