VSSR2403101JUF - Vishay

Description: Resistor Networks & Arrays 100ohms 24pin Iso 5%

Download VSSR2403101JUF Model

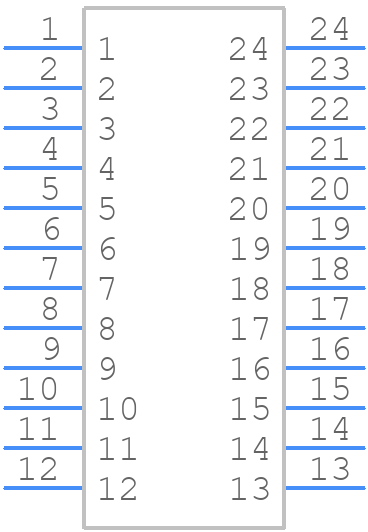

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
VSSR2403101JUF - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - qsop-24
click to zoom
3D Models
VSSR2403101JUF - Vishay  - 3D model - Small Outline Packages - qsop-24
click to zoom

VSSR2403101JUF Details

  • Manufacturer Part Number:

    VSSR2403101JUF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.20

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.9

  • Additional Feature:

    FLAME PROOF

  • Construction:

    Rectangular

  • Element Power Dissipation:

    0.1 W

  • First Element Resistance:

    100 Ω

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    12

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    1.63 mm

  • Package Length:

    3.91 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    8.66 mm

  • Packing Method:

    TUBE

  • Rated Power Dissipation (P):

    1.4 W

  • Rated Temperature:

    70 °C

  • Resistance:

    100 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Second/Last Element Resistance:

    100 Ω

  • Size Code:

    1534

  • Surface Mount:

    YES

  • Technology:

    THIN FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Shape:

    GULL WING

  • Tolerance:

    5%

  • Working Voltage:

    50 V

VSSR2403101JUF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the VSSR2403101JUF is a rectangular pad with dimensions of 2.5 mm x 1.3 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
  • To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a solder flux to the pads. The recommended soldering time is 2-3 seconds per pad.
  • The maximum operating temperature range for the VSSR2403101JUF is -55°C to 150°C, with a derating of 1.33 mW/°C above 25°C.
  • Yes, the VSSR2403101JUF is suitable for high-frequency applications up to 1 GHz, but it's essential to consider the parasitic inductance and capacitance of the device in your design.
  • To prevent ESD damage, handle the VSSR2403101JUF with an ESD wrist strap or mat, and ensure that your workspace is ESD-protected. Avoid touching the device's pins or pads with your bare hands.
