- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for VSW2-33-10W+
- Part Number VSW2-33-10W+
- Manufacturer Mini-Circuits
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - JZ1436
- Released Date Mar 18, 2024
- Last Modified Date Jun 25, 2024 8:10 AM UTC
- Pinout / Pin List Click Here (Member Only)
VSW2-33-10W+ Details
-
Manufacturer Part Number:
VSW2-33-10W+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.1
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
42.3 dBm
-
Insertion Loss-Max:
0.8 dB
-
Operating Frequency-Max:
3000 MHz
VSW2-33-10W+ Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the VSW2-33-10W+ is -40°C to +85°C.
-
Yes, the VSW2-33-10W+ is designed for high-reliability applications and is built with high-quality components to ensure long-term reliability.
-
Yes, the VSW2-33-10W+ is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The typical insertion loss of the VSW2-33-10W+ is around 0.5 dB, making it suitable for high-frequency applications.
-
Yes, the VSW2-33-10W+ is designed to handle high power levels up to 10W, making it suitable for high-power applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
VSW2-33-10W+ Overview

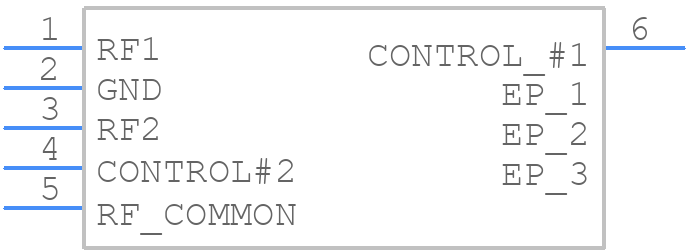

Use the download button to access the VSW2-33-10W+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VSW2-,
or try a keyword search, such as RF/Microwave Switches
