VTM48EF030T070A00 - VICOR

Description: Isolated DC/DC Converters VTM 48 V Isolated DC DC Converter

Download VTM48EF030T070A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

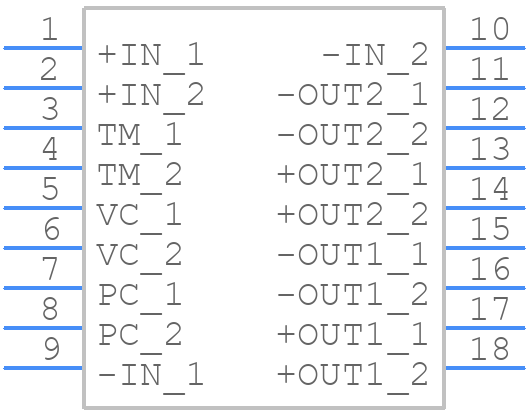

Symbol
VTM48EF030T070A00 - VICOR - PCB symbol
click to zoom

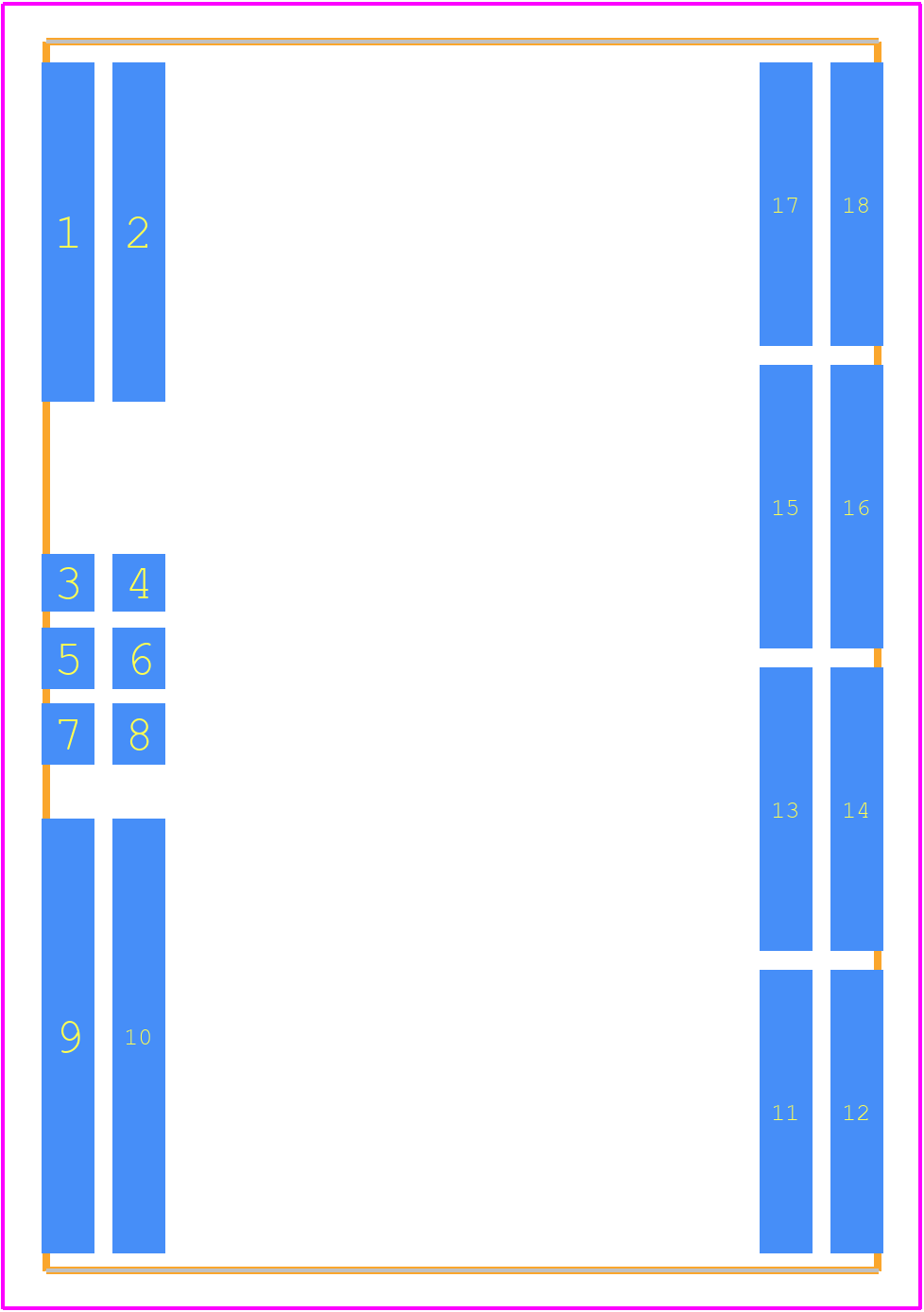

PCB Footprints
VTM48EF030T070A00 - VICOR PCB footprint - Other - Other - VTM48EF030T070A00-2
click to zoom
3D Models
VTM48EF030T070A00 - VICOR - 3D model - Other - VTM48EF030T070A00-2
click to zoom

VTM48EF030T070A00 Details

  • Manufacturer Part Number:

    VTM48EF030T070A00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MODULE-60

  • Pin Count:

    30

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.40.60.12

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • JESD-30 Code:

    R-XXMA-J60

  • JESD-609 Code:

    e4

  • Length:

    32.5 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    60

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.98 mm

  • Supply Voltage-Max (Vsup):

    55 V

  • Supply Voltage-Min (Vsup):

    26 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    J BEND

  • Terminal Position:

    UNSPECIFIED

  • Width:

    22 mm

VTM48EF030T070A00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a shutdown circuit to discharge the output capacitors. The datasheet provides guidelines for these circuits.
  • Input voltage transients can affect the VTM48EF030T070A00's performance and reliability. Vicor recommends using input filters and transient suppressors to mitigate the effects of transients.
  • Vicor recommends using oscilloscopes and current probes to monitor the input and output waveforms, and to check for signs of overheating or overcurrent conditions. The datasheet provides troubleshooting guidelines and a fault tree analysis.
  • The VTM48EF030T070A00 is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. Vicor recommends using EMI filters and shielding to minimize radiated emissions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VTM48EF030T070A00 Overview

Use the download button to access the VTM48EF030T070A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VTM48, or try a keyword search, such as Other Signal Circuits
