VTM48ET060T040A00 - VICOR

Description: Voltage Transformation Module DC DC Converter 1 Output 6V 40A 26V - 55V Input

Download VTM48ET060T040A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VTM48ET060T040A00 - VICOR - PCB symbol
click to zoom

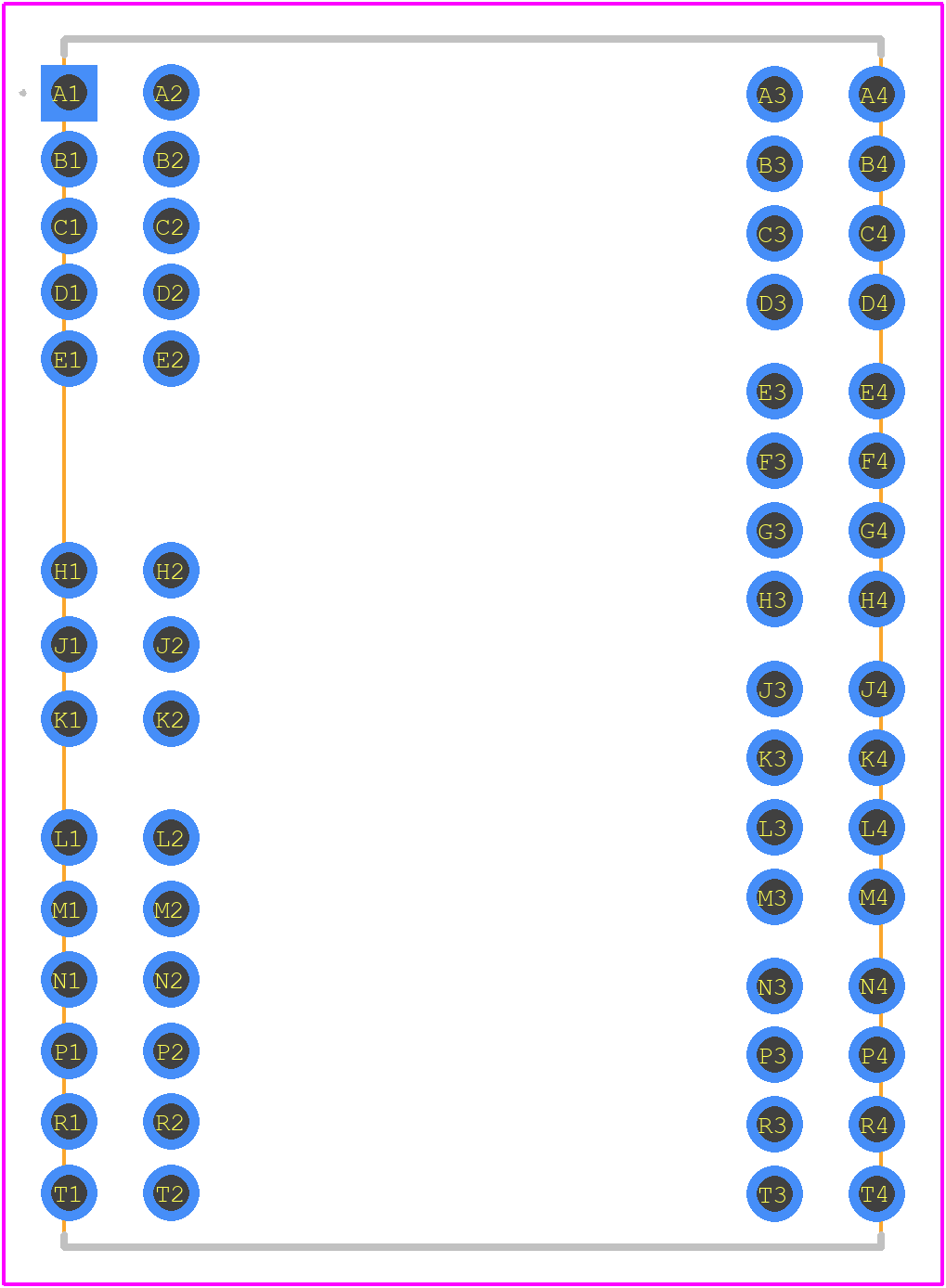

PCB Footprints
VTM48ET060T040A00 - VICOR PCB footprint - Other - Other - 32.5 x 22.0 x 6.73mm_2025
click to zoom
3D Models
VTM48ET060T040A00 - VICOR - 3D model - Other - 32.5 x 22.0 x 6.73mm_2025
click to zoom

VTM48ET060T040A00 Details

  • Manufacturer Part Number:

    VTM48ET060T040A00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-60

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XDMA-J60

  • Length:

    32.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    60

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    6.98 mm

  • Supply Voltage-Max (Vsup):

    55 V

  • Supply Voltage-Min (Vsup):

    26 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    J BEND

  • Terminal Position:

    DUAL

  • Width:

    22 mm

VTM48ET060T040A00 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidelines for capacitor selection in their datasheet and application notes. The selection depends on the specific application, input voltage, and output current requirements. It's recommended to consult with Vicor's technical support or a qualified engineer for specific guidance.
  • The maximum allowable ripple current for the input and output capacitors depends on the specific capacitor type and rating. Vicor recommends consulting the capacitor manufacturer's datasheet and application notes for specific guidance.
  • Vicor provides guidelines for EMC and EMI compliance in their application notes and datasheets. It's recommended to follow these guidelines and consult with a qualified engineer or Vicor's technical support to ensure compliance with relevant standards and regulations.
  • Vicor provides guidelines for soldering and assembly in their application notes and datasheets. It's recommended to follow these guidelines and consult with a qualified engineer or Vicor's technical support to ensure proper assembly and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VTM48ET060T040A00 Overview

Use the download button to access the VTM48ET060T040A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VTM48, or try a keyword search, such as Other Signal Circuits
