The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing the device near a heat sink or thermal pad. A thermal management strategy should include a heat sink or thermal interface material to maintain a junction temperature below 125°C.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering components, and consider using a metal enclosure or shielded cables. Additionally, ensure that the device is operated within the specified frequency range and power levels.
The device can withstand voltage transients or spikes up to 2x the maximum rated voltage for a duration of 100ms, as per the IEC 61000-4-5 standard. However, it's recommended to use a voltage transient suppressor or TVS diode to protect the device from excessive voltage spikes.
Yes, the VTX-101-003 is designed for high-reliability applications and meets the requirements of various safety standards, including IEC 61508 and EN 50129. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application's safety and reliability requirements.
Common issues include overheating, output voltage deviation, or input voltage range errors. Troubleshooting involves checking the PCB layout, thermal management, input voltage, and output loading. Consult the datasheet and application notes for specific guidance on troubleshooting and fault diagnosis.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VTX-101-003 Overview

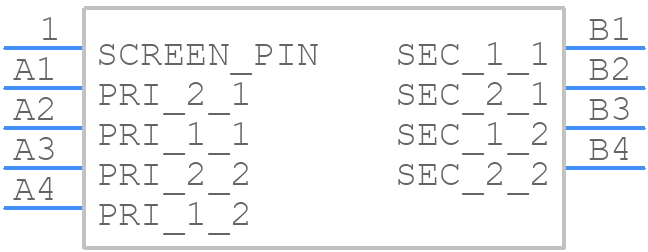

Use the download button to access the VTX-101-003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VTX-1,
or try a keyword search, such as Audio Transformers
