The datasheet provides general guidelines, but Vigortronix recommends a minimum of 2oz copper thickness, 1.5mm via diameter, and a thermal pad size of 10mm x 10mm. Additionally, ensure good airflow and consider using a heat sink or thermal interface material to maintain a junction temperature below 125°C.
Follow the recommended soldering profile (260°C peak temperature, 3°C/s ramp rate), use a solder with a melting point above 217°C, and avoid applying excessive force or pressure during handling. Vigortronix also recommends using a soldering iron with a temperature-controlled tip and a flux with a low acidity level.
Operating the device outside of the recommended temperature range (-40°C to 85°C) may affect its performance, reliability, and lifespan. Vigortronix advises that the device may experience reduced efficiency, increased power consumption, and potential damage or failure if operated outside of the specified range.
Vigortronix recommends following a systematic approach to troubleshooting, starting with visual inspection, then checking the input voltage, output voltage, and current. Use an oscilloscope to analyze the output waveform and check for signs of overheating, such as excessive temperature or reduced output power.
Yes, the VTX-101-006 is designed to meet CISPR 32 Class B and EN 55032 Class B EMI standards. Vigortronix recommends following good EMI design practices, such as using a metal enclosure, minimizing loop areas, and using EMI filters or shielding where necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VTX-101-006 Overview

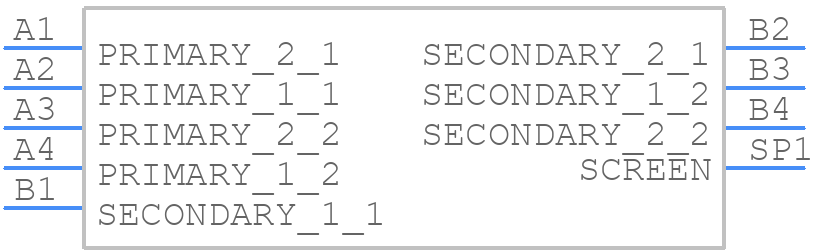

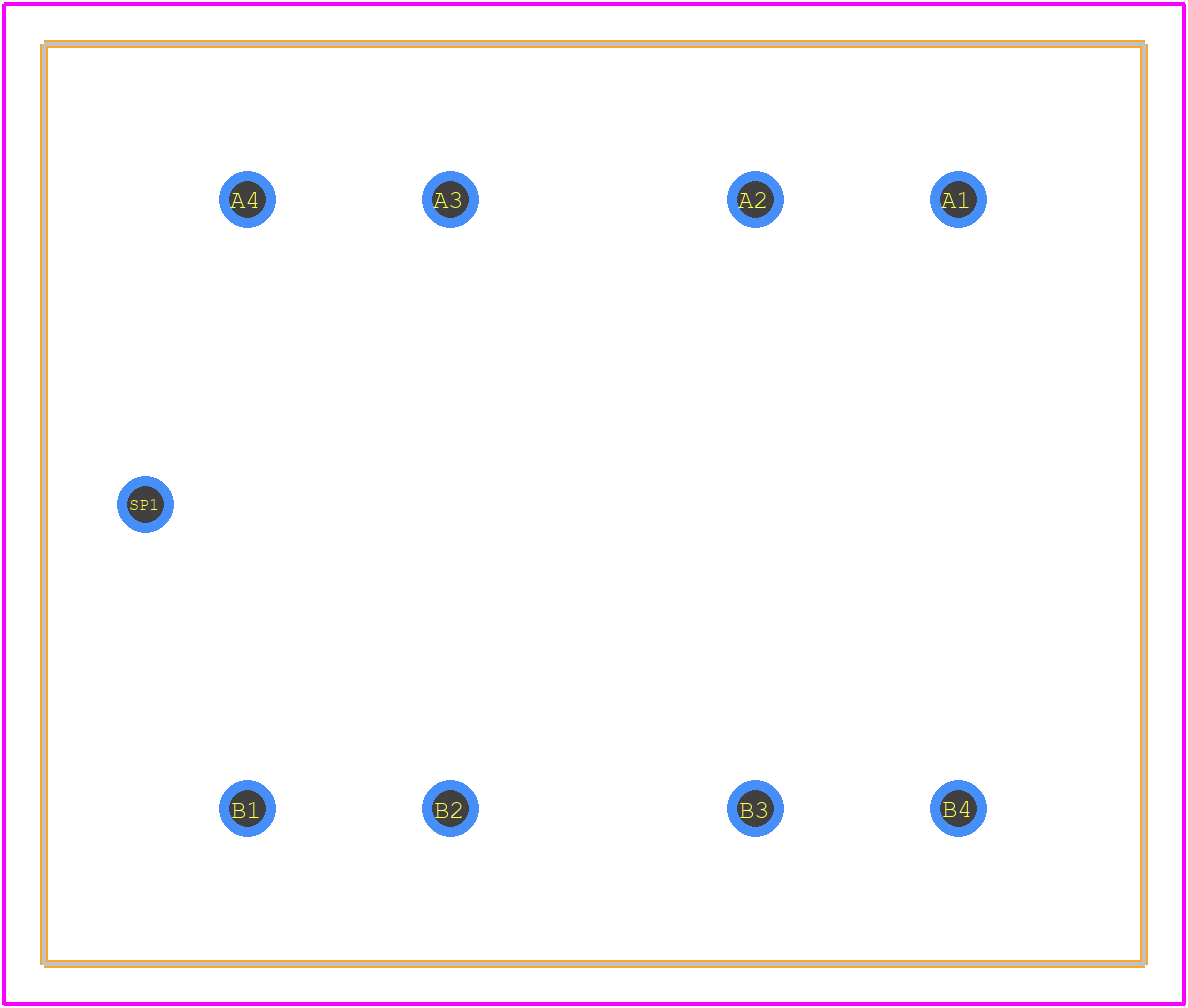

Use the download button to access the VTX-101-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VTX-1,
or try a keyword search, such as Audio Transformers
