VTX-121-3015-206 - VIGORTRONIX

Description: VIGORTRONIX - VTX-121-3015-206 - 1.5VA ENCAPSULATED TRANSFORMER 230V - 6V

Download VTX-121-3015-206 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

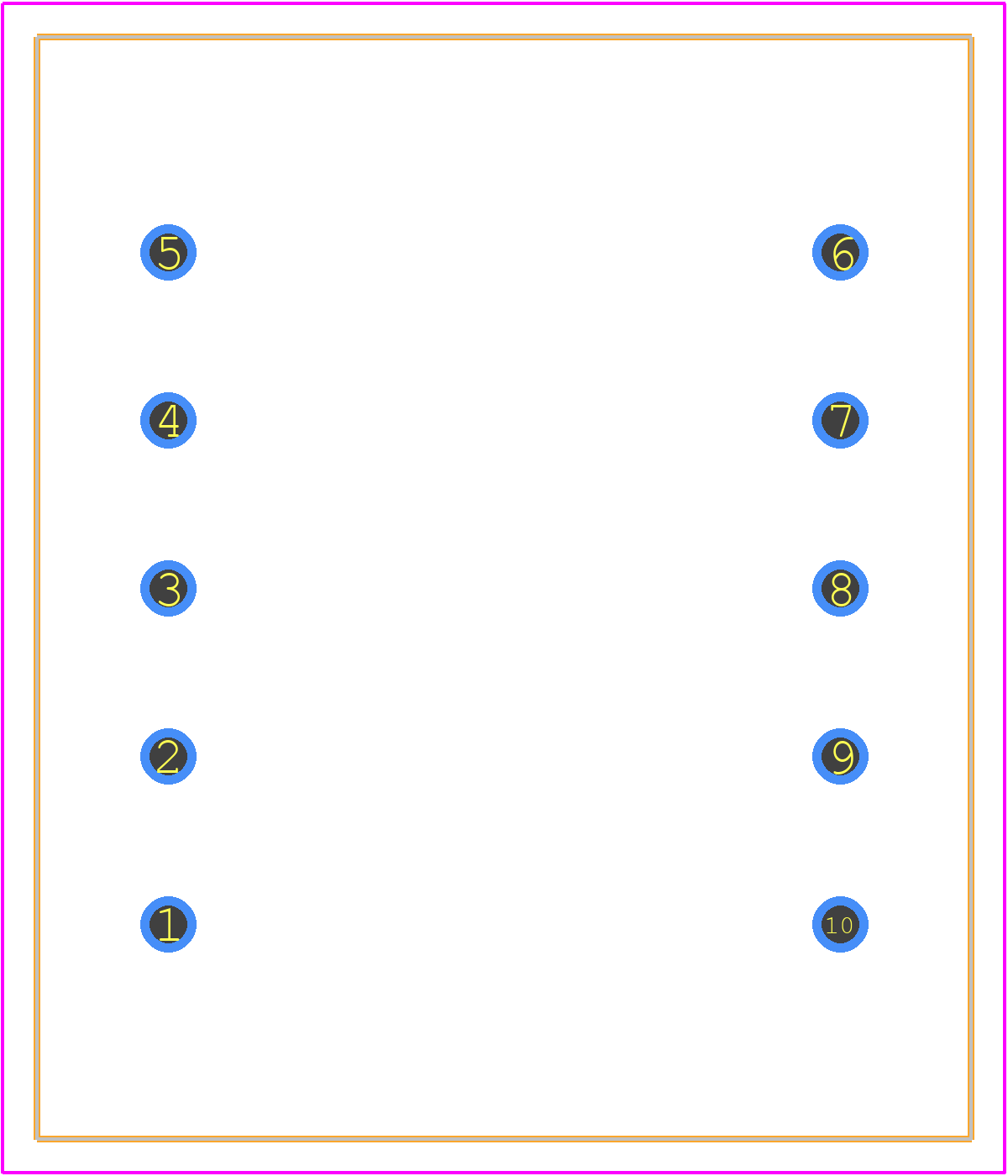

VTX-121-3015-206 - VIGORTRONIX PCB footprint - Other - Other - VTX-121-3015-206-2
click to zoom
3D Models
VTX-121-3015-206 - VIGORTRONIX  - 3D model - Other - VTX-121-3015-206-2
click to zoom

VTX-121-3015-206 Details

  • Manufacturer Part Number:

    VTX-121-3015-206

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Vigortronix (UK) Ltd

  • Approvals:

    CE, UL, VDE

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    24 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    4200 V

  • Length:

    32.6 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.125 A

  • Output Voltage 1:

    6 V

  • Output Voltage 2:

    6 V

  • Primary Rating:

    SINGLE 230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    1.5 VA

  • Width:

    27.6 mm

VTX-121-3015-206 Frequently Asked Questions (FAQs)

  • The datasheet provides general guidelines, but for optimal performance, it's recommended to follow a 4-layer PCB stackup with a dedicated thermal layer, and ensure a minimum of 10mm clearance around the component for airflow. Additionally, a thermal pad or heat sink can be used to dissipate heat.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250-260°C, and apply a small amount of solder paste. Avoid applying excessive force or pressure, which can damage the component. It's also recommended to follow the manufacturer's recommended soldering profile and use a soldering iron with a fine tip.
  • Operating the component outside of its specified temperature range (-40°C to 125°C) can lead to reduced performance, decreased lifespan, and potential failure. It's essential to ensure the component is operated within its specified temperature range to maintain its reliability and performance.
  • To troubleshoot issues, start by verifying the component's pinout and connections. Check for any signs of physical damage, overheating, or excessive vibration. Use a multimeter to measure voltage and current, and compare the results to the datasheet specifications. If the issue persists, consult the manufacturer's application notes or contact their technical support team.
  • Yes, the VTX-121-3015-206 is a high-frequency component, and as such, it's essential to follow proper EMI/EMC design practices. Ensure proper shielding, grounding, and decoupling, and consider using EMI filters or absorbers to minimize radiation. Additionally, follow the manufacturer's recommended layout and spacing guidelines to minimize electromagnetic interference.
