The datasheet provides general guidelines, but Vigortronix recommends a minimum of 2oz copper thickness, 1.5mm via diameter, and a thermal pad size of 10mm x 10mm. Additionally, ensure good airflow and consider using a heat sink or thermal interface material to maintain a junction temperature below 125°C.
Follow the recommended soldering profile (260°C peak temperature, 3°C/s ramp rate), use a solder with a melting point above 217°C, and avoid applying excessive force or torque during handling. Vigortronix also recommends using a soldering iron with a temperature-controlled tip and a flux with a low acidity level.
Operating the device beyond the specified temperature range (-40°C to 125°C) may lead to reduced performance, decreased lifespan, or even permanent damage. Vigortronix recommends derating the output power by 1.5% per degree Celsius above 85°C to ensure reliable operation.
Start by verifying the input voltage, current, and temperature. Check for signs of overheating, such as discoloration or deformation. Use an oscilloscope to monitor the output waveform and ensure it meets the specified characteristics. If issues persist, contact Vigortronix support for further assistance.
Yes, Vigortronix recommends following good EMI/EMC design practices, such as using a metal enclosure, minimizing loop areas, and adding EMI filters or shielding as necessary. Ensure the device is installed at least 10mm away from any metal objects and follow the recommended PCB layout to minimize radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VTX-121-3023-206 Overview

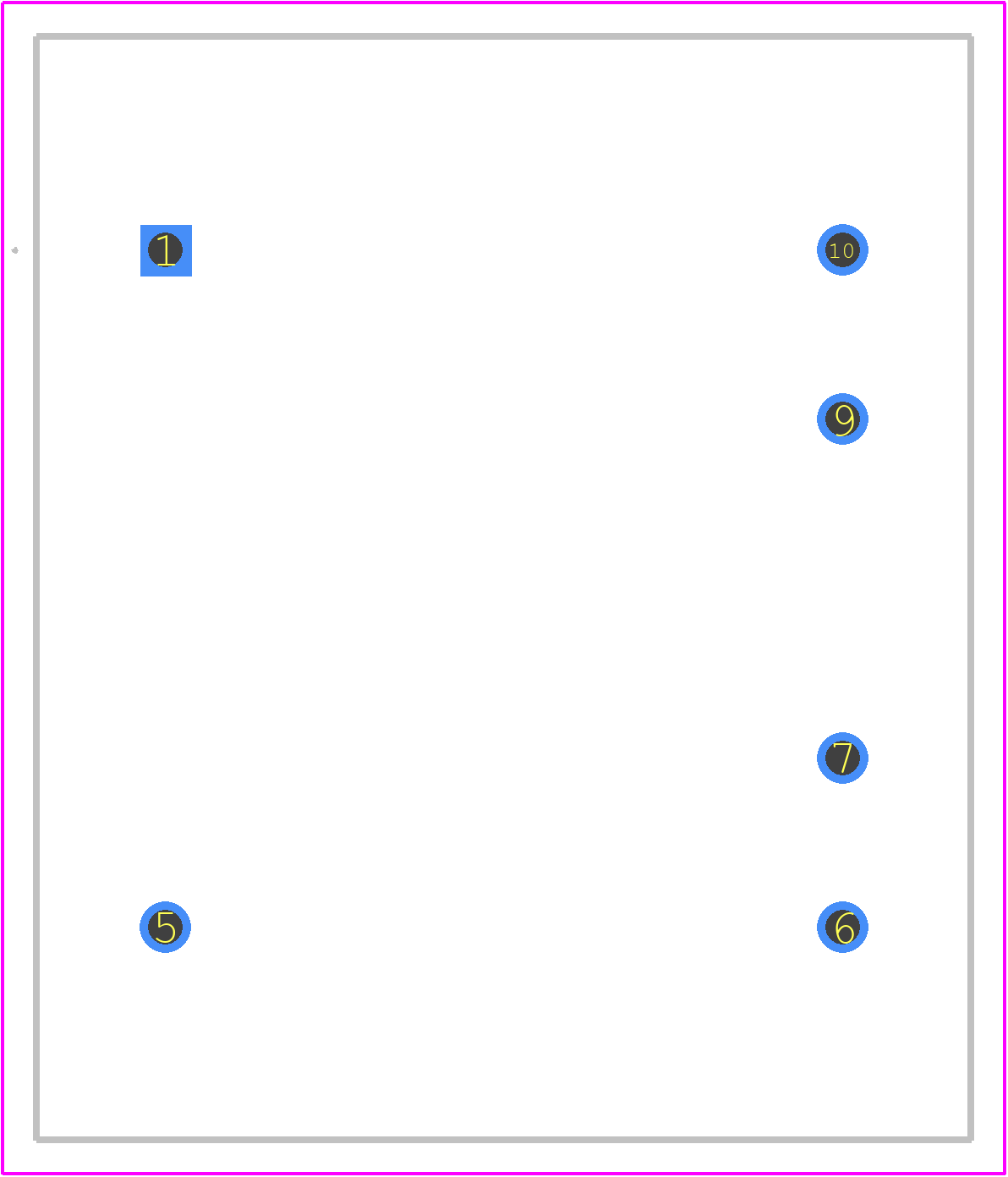

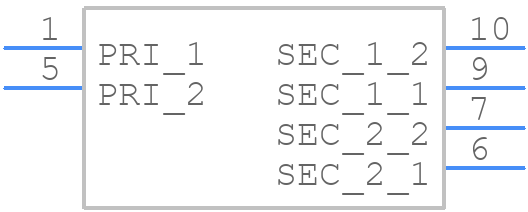

Use the download button to access the VTX-121-3023-206 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VTX-1,
or try a keyword search, such as Power/Mains Transformers
