The recommended PCB layout involves placing the VTX-214-001-105 near the edge of the board, with a solid ground plane underneath. Thermal management involves using a heat sink with a thermal interface material, ensuring a minimum of 10mm clearance around the device for airflow.
To ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, follow good PCB design practices, such as separating analog and digital grounds.
The recommended input voltage range is 10.8V to 13.2V, with a typical operating voltage of 12V. Operating outside this range may affect performance and reliability.
To troubleshoot, check the input voltage, output load, and thermal management. Verify the PCB layout and component selection meet the recommended specifications. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for guidance.
The VTX-214-001-105 is designed for general-purpose use. For high-reliability or safety-critical applications, consult with Vigortronix (UK) Ltd or a qualified engineer to ensure the device meets the specific requirements and regulations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VTX-214-001-105 Overview

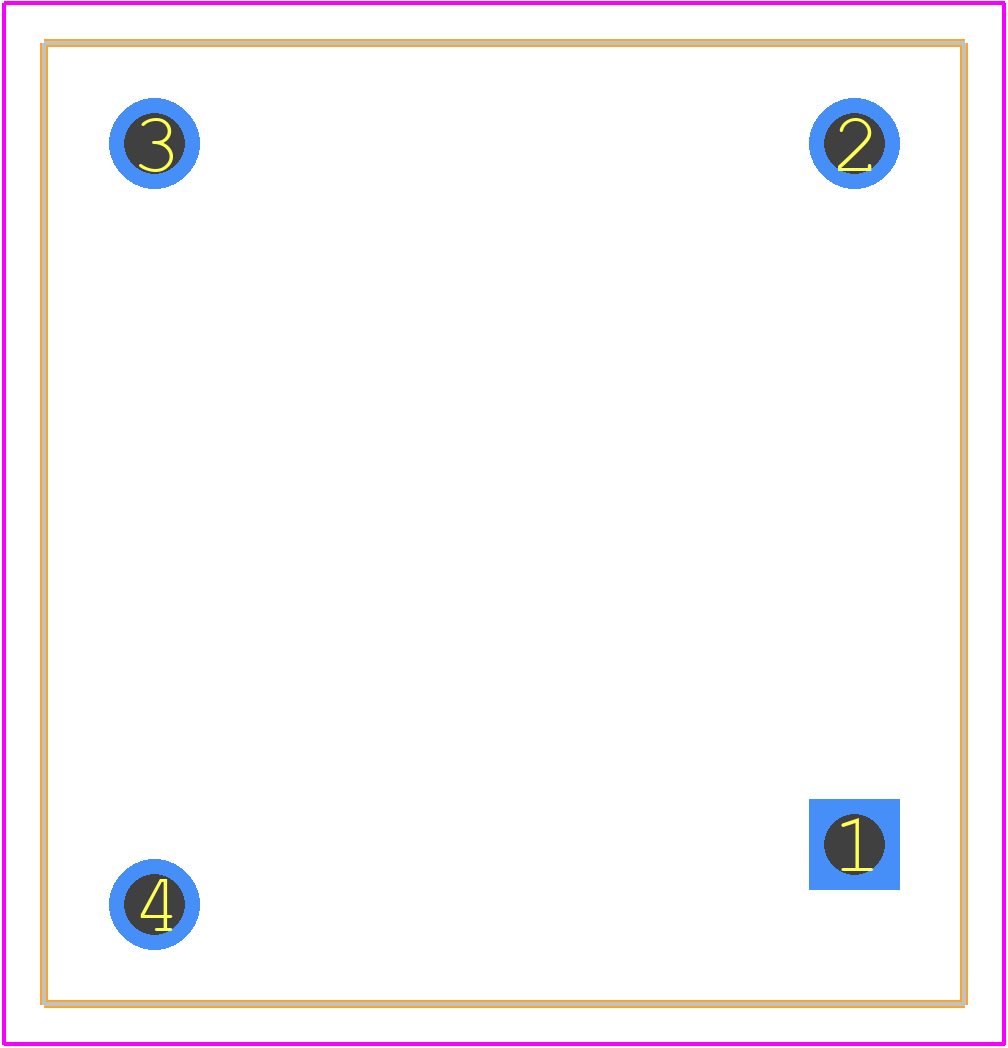

Use the download button to access the VTX-214-001-105 schematic symbol, PCB footprint, and 3D model.
