The recommended PCB layout and thermal management for the VTX-214-001-112 can be found in the application note provided by Vigortronix. It's essential to follow the recommended layout and thermal management guidelines to ensure optimal performance, reliability, and to prevent overheating.
The VTX-214-001-112 is designed to meet various safety and regulatory standards, including UL, EN, and IEC. To ensure compliance, engineers should follow the recommended design guidelines, use the converter in accordance with the datasheet, and perform necessary testing and certification for their specific application.
The maximum allowable capacitance for the output filter is not explicitly stated in the datasheet. However, Vigortronix recommends following the application note guidelines for output filter design, which provide a recommended capacitance range to ensure stable operation and minimize output voltage ripple.
The VTX-214-001-112 is designed to meet standard environmental requirements, but it may not be suitable for high-vibration or high-shock environments without additional mechanical support or design considerations. Engineers should consult with Vigortronix or perform additional testing to ensure the converter's reliability in such environments.
The recommended input fuse rating and type are not explicitly stated in the datasheet. However, Vigortronix recommends consulting the application note or contacting their technical support for guidance on selecting the appropriate input fuse rating and type based on the specific application requirements.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
VTX-214-001-112 Overview

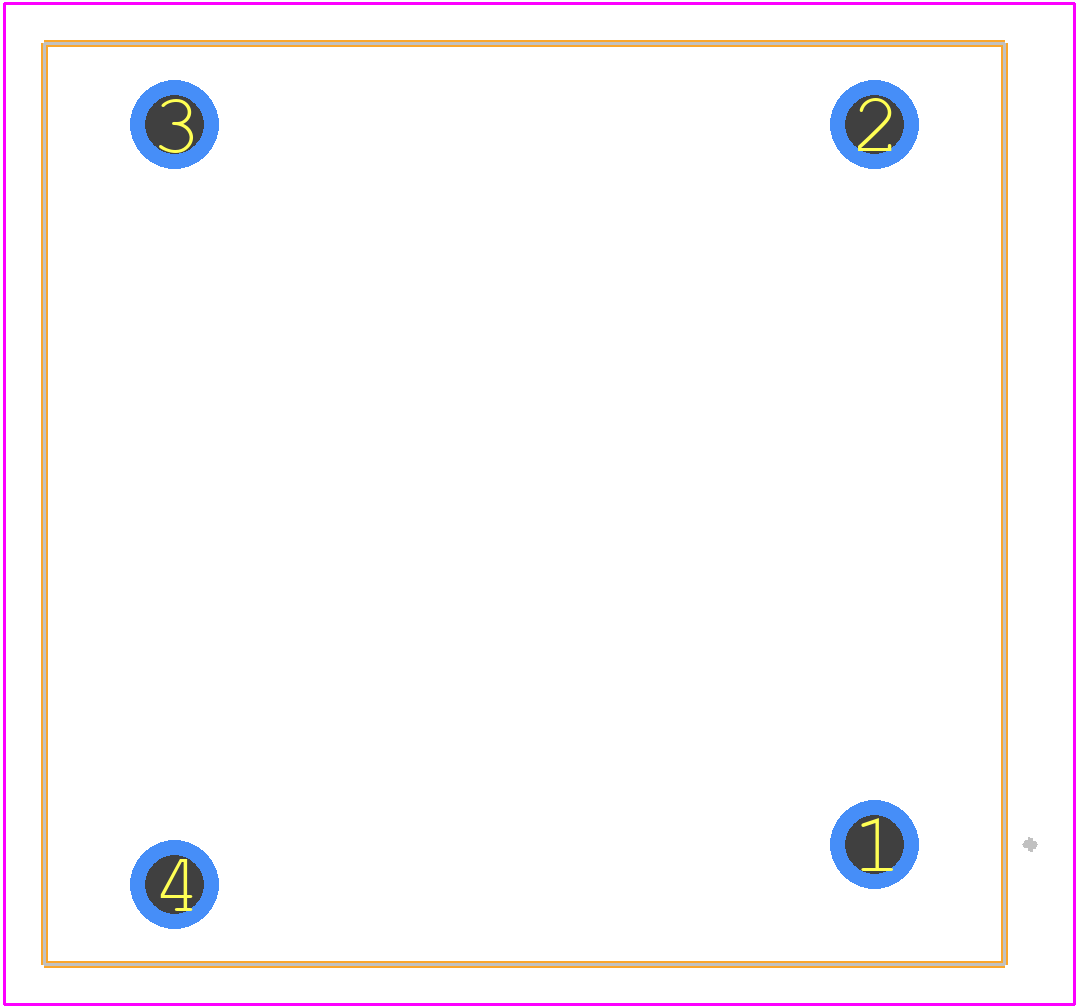

Use the download button to access the VTX-214-001-112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VTX-2,
or try a keyword search, such as Power Supply Modules
