The datasheet provides general guidelines, but Vigortronix recommends a minimum of 2oz copper thickness, 1W/inch² thermal conductivity, and a 10mm x 10mm thermal pad for optimal heat dissipation. Additionally, a 4-layer PCB with a solid ground plane is recommended to minimize EMI and noise.
Vigortronix recommends using a soldering iron with a temperature range of 220-250°C, and a solder with a melting point of 180-200°C. Avoid applying excessive force or pressure during assembly, and ensure the component is properly aligned with the PCB pads.
The VTX-214-002-105 is commonly used in industrial power supplies, motor control systems, and renewable energy systems. It's also suitable for use in electric vehicle charging infrastructure, medical devices, and aerospace applications.
The VTX-214-002-105 has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. The OVP threshold is set at 1.5 times the maximum rated voltage, and the OCP threshold is set at 1.5 times the maximum rated current. The device will automatically shut down in case of an overvoltage or overcurrent event.
The typical lead time for the VTX-214-002-105 is 6-8 weeks, and the minimum order quantity (MOQ) is 500 pieces. However, this may vary depending on the specific requirements and availability of the component.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VTX-214-002-105 Overview

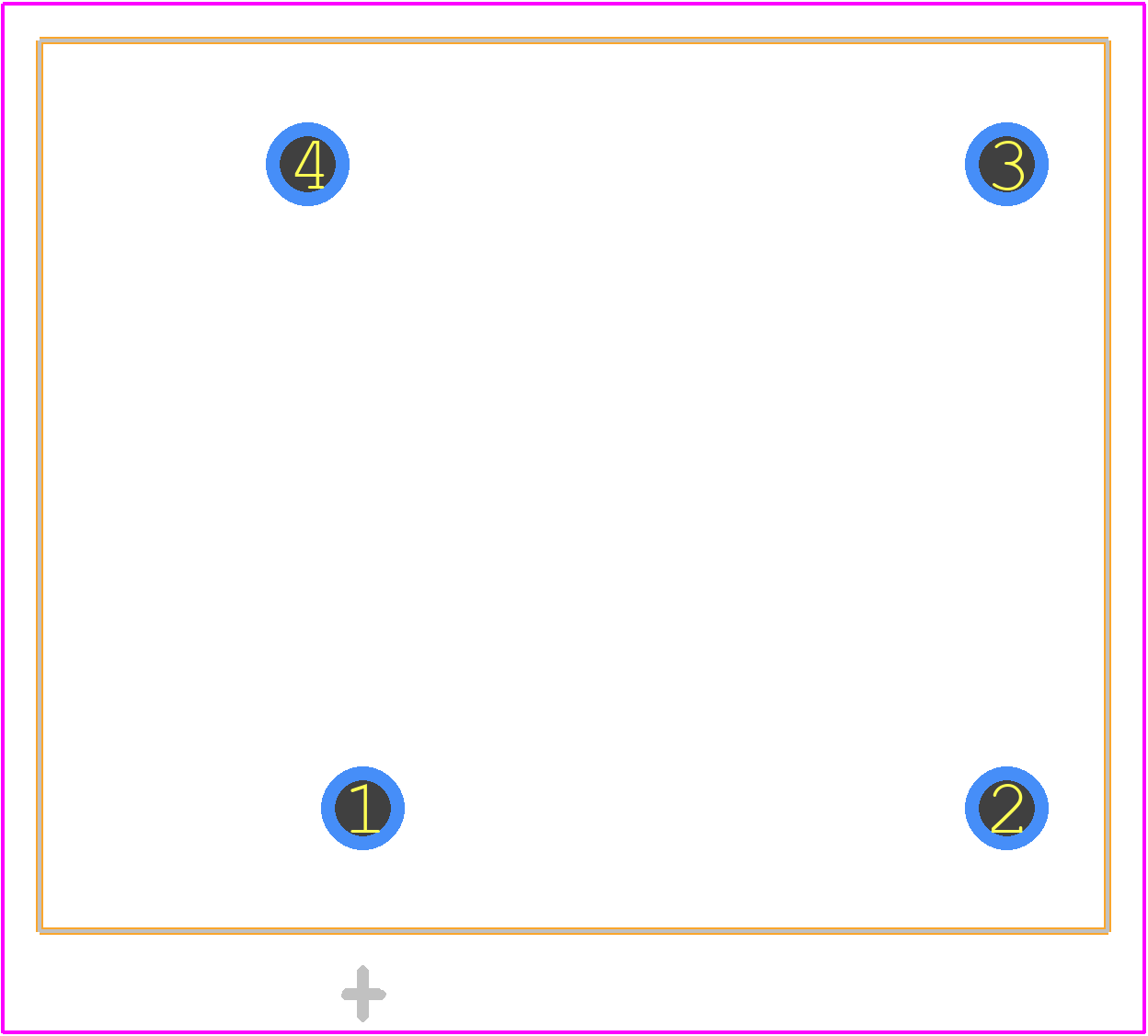

Use the download button to access the VTX-214-002-105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VTX-2,
or try a keyword search, such as Power Supply Modules
