The recommended PCB layout involves keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the loop area of the input and output traces. For thermal management, ensure good airflow around the module and consider using a heat sink or thermal interface material if operating in high-temperature environments.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and consider using a metal enclosure to reduce electromagnetic radiation. Additionally, ensure that the module is properly grounded and that all cables and connectors are properly shielded.
The derating curves for the VTX-214-005-105 can be obtained from Vigortronix (UK) Ltd or a authorized distributor. To apply the derating curves, determine the maximum operating temperature and input voltage, and then use the curves to determine the maximum output power and current. This ensures safe and reliable operation of the module.
Yes, the VTX-214-005-105 can be used in a redundant or parallel configuration, but it requires careful consideration of the system design and implementation. Ensure that the modules are properly synchronized, and that the system can handle the increased power and heat generation. Consult with Vigortronix (UK) Ltd or a qualified engineer for guidance on implementing a redundant or parallel configuration.
The VTX-214-005-105 is typically used in industrial, medical, and aerospace applications that require high-reliability DC-DC conversion. Specific use cases include powering sensors, actuators, and other devices in harsh environments, as well as providing isolated power in medical devices and aerospace systems.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
VTX-214-005-105 Overview

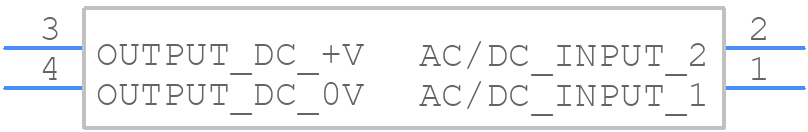

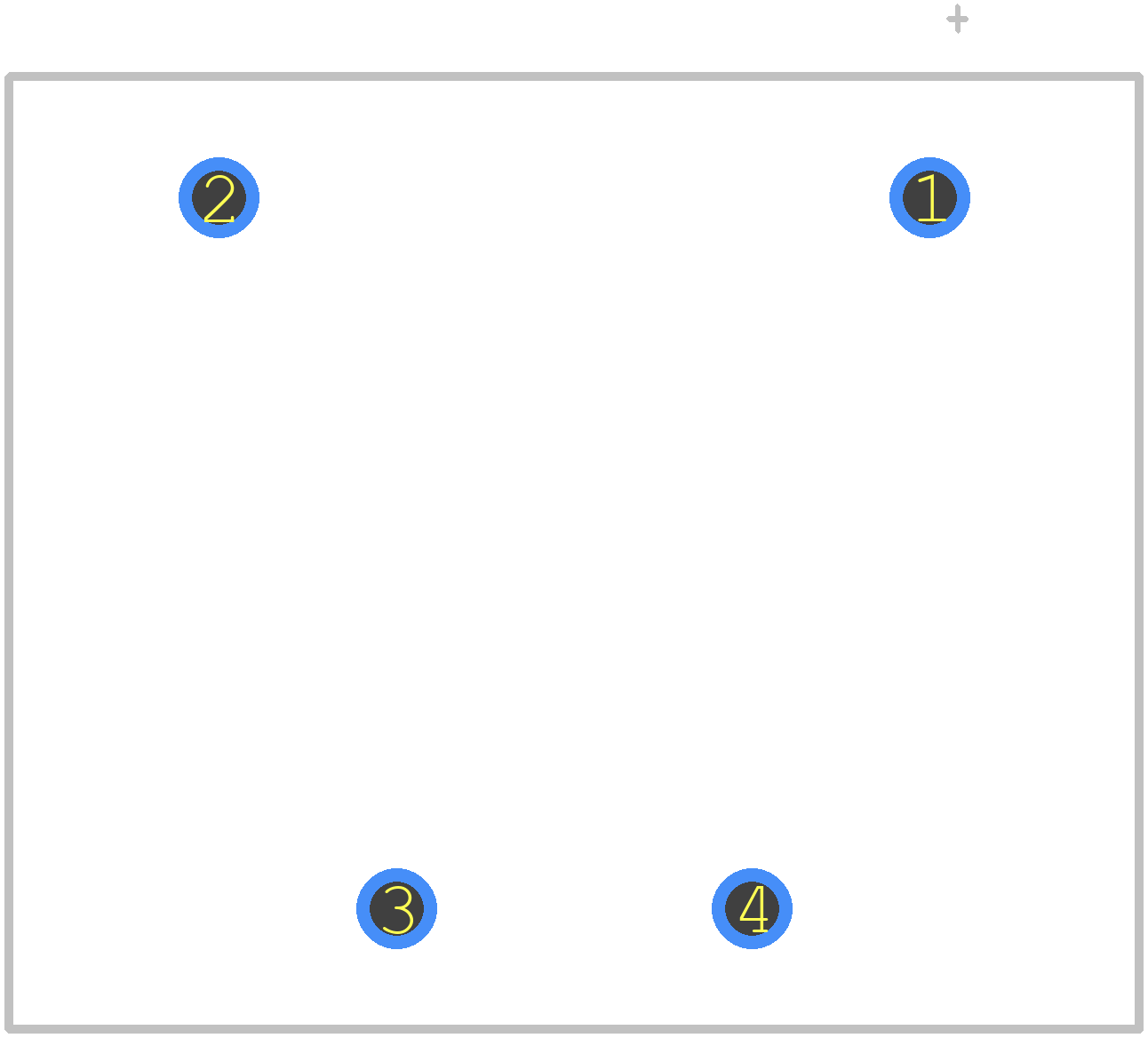

Use the download button to access the VTX-214-005-105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VTX-2,
or try a keyword search, such as Power Supply Modules
