The recommended PCB layout involves keeping the input and output tracks separate, using a solid ground plane, and placing the device near a heat sink or thermal pad. Ensure good airflow and consider using thermal interface materials to maintain a junction temperature below 125°C.
Use a metal enclosure, ensure good grounding, and add EMI filters or shielding to the input and output lines. Keep the device away from other noise-sensitive components and follow good PCB design practices for EMC.
Derating curves are available upon request from Vigortronix. Apply the curves by reducing the maximum output power or current as the ambient temperature increases, ensuring the device operates within the recommended temperature range.
Yes, but consult with Vigortronix for specific guidance on parallel or redundant configurations. Ensure proper synchronization, current sharing, and thermal management to avoid overheating or uneven stress on the devices.
Store the devices in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the devices by the body, avoiding touching the pins or electrical components. Use anti-static wrist straps and mats when handling the devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VTX-214-005-112 Overview

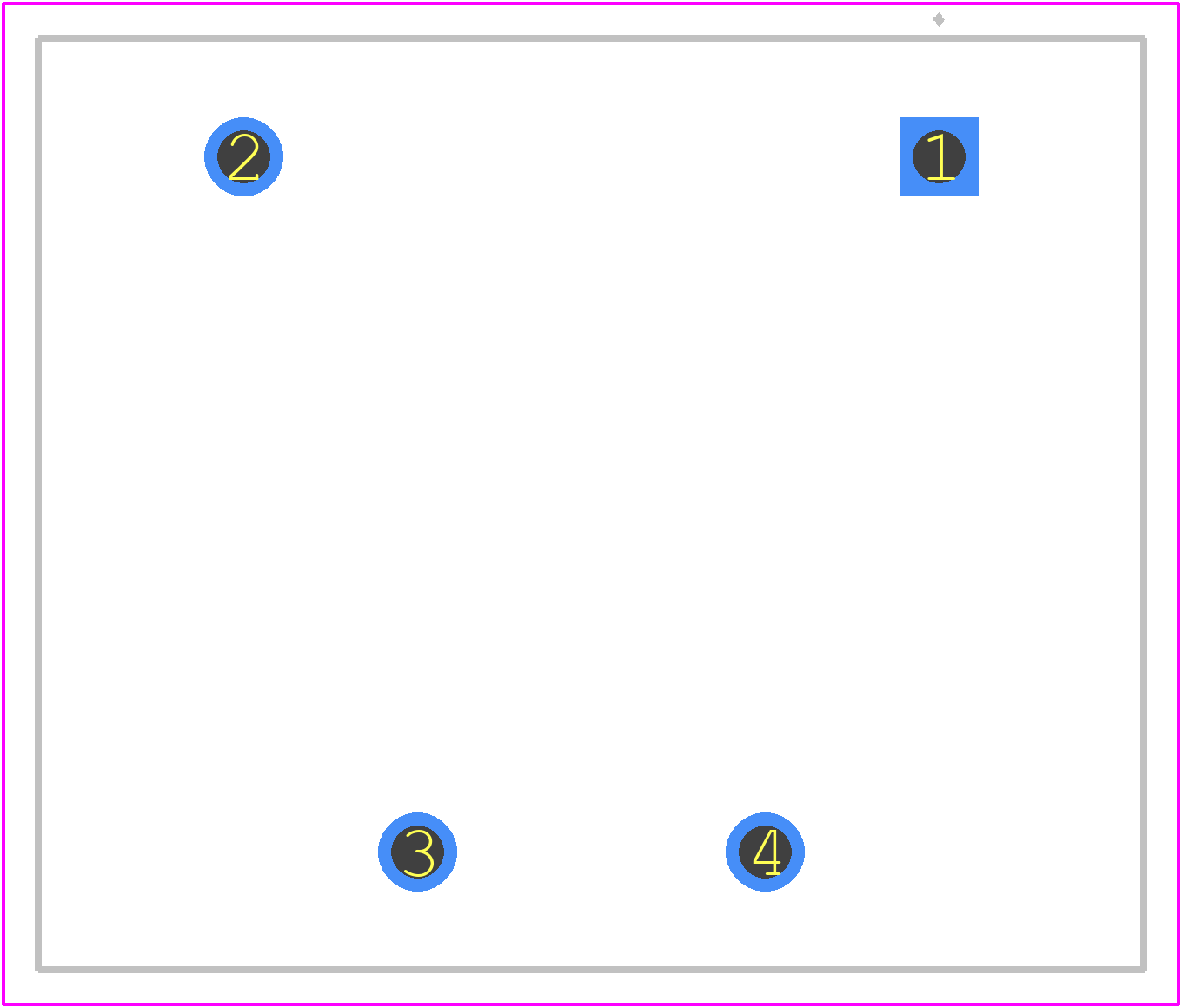

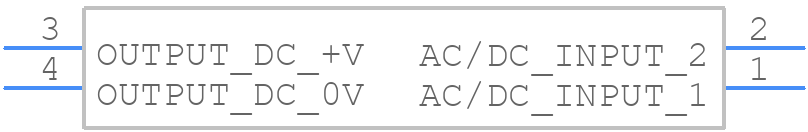

Use the download button to access the VTX-214-005-112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VTX-2,
or try a keyword search, such as Power Supply Modules
