VTX-214-010-112 - VIGORTRONIX

Description: VIGORTRONIX - VTX-214-010-112 - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 10 W, 12 V, 830 mA

Download VTX-214-010-112 Model

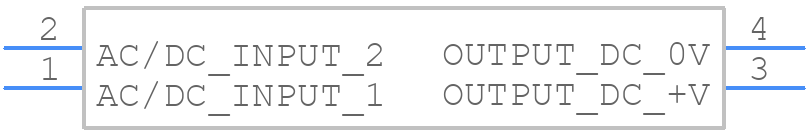

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

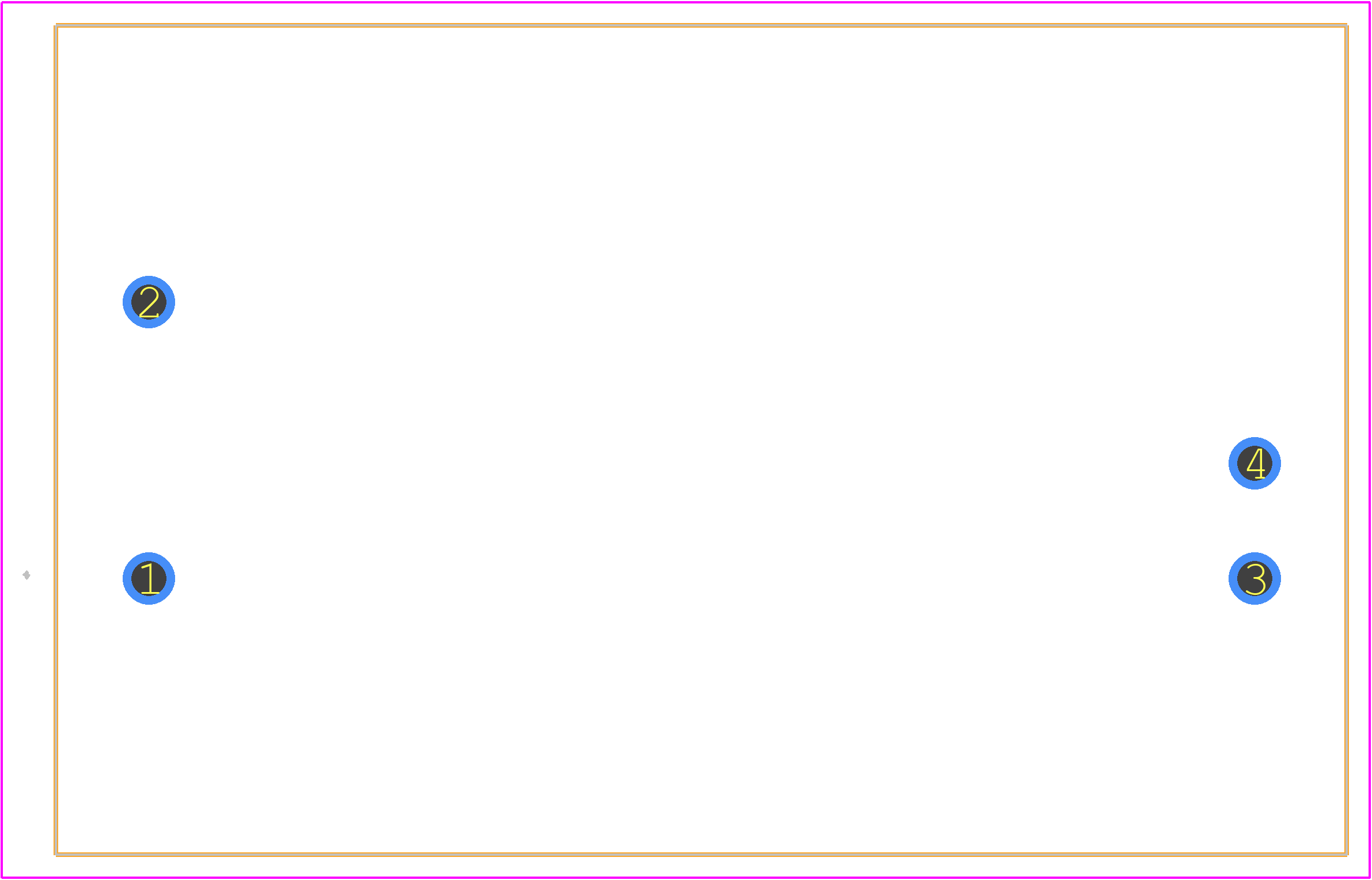

VTX-214-010-112 - VIGORTRONIX PCB footprint - Other - Other - VTX-214-010-112-2
click to zoom
3D Models
VTX-214-010-112 - VIGORTRONIX  - 3D model - Other - VTX-214-010-112-2
click to zoom

VTX-214-010-112 Details

  • Manufacturer Part Number:

    VTX-214-010-112

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-4

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vigortronix (UK) Ltd

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

VTX-214-010-112 Frequently Asked Questions (FAQs)

  • The datasheet provides general guidelines, but Vigortronix recommends a minimum of 2oz copper thickness, 1.5mm via diameter, and a thermal pad size of 10mm x 10mm. Additionally, ensure good airflow and consider using a heat sink or thermal interface material to maintain a junction temperature below 125°C.
  • Follow the recommended soldering profile (260°C peak temperature, 3°C/s ramp rate), use a solder with a melting point above 217°C, and avoid applying excessive force or pressure during handling. Vigortronix also recommends using a soldering iron with a temperature-controlled tip and a flux with a low acidity level.
  • Operating the device outside of the recommended temperature range (-40°C to 125°C) may affect its performance, reliability, and lifespan. Vigortronix advises that the device may experience reduced efficiency, increased power losses, and potential damage or failure if operated outside of the specified range.
  • While the VTX-214-010-112 is designed to be robust, Vigortronix recommends following the guidelines for vibration and shock testing outlined in the datasheet. Additionally, consider using mechanical fastening or potting compounds to secure the device and ensure reliable operation in high-vibration or high-shock environments.
  • Vigortronix recommends following a systematic approach to troubleshooting, starting with visual inspection, then checking the input and output voltages, and finally performing functional tests. Consult the datasheet and application notes for specific guidance, and contact Vigortronix support for further assistance if needed.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VTX-214-010-112 Overview

Use the download button to access the VTX-214-010-112 schematic symbol, PCB footprint, and 3D model.
