VTX-214-010-124 - VIGORTRONIX

Description: AC-DC CONV, FIXED, 1 O/P, 10W, 24V

Download VTX-214-010-124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

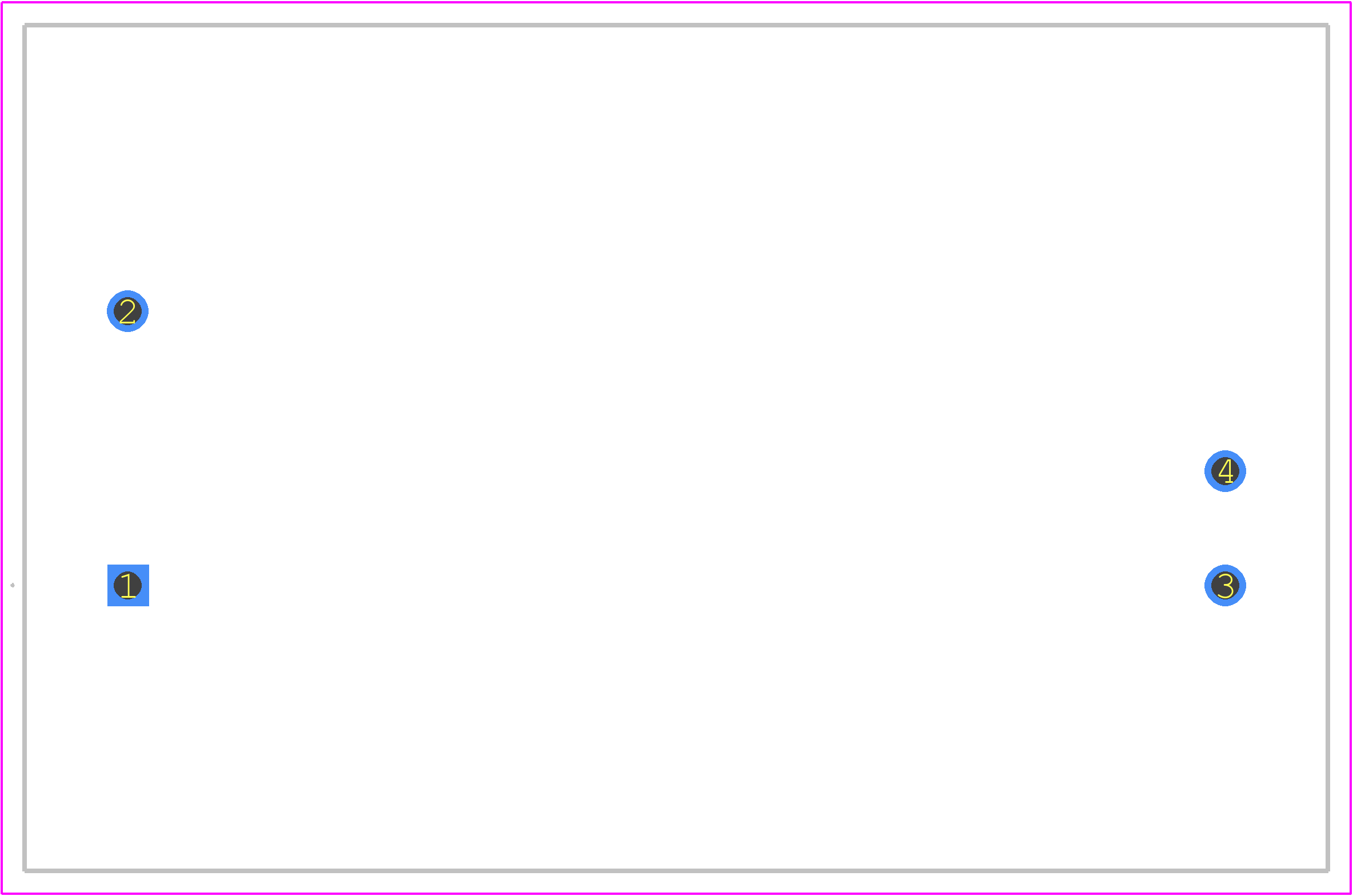

VTX-214-010-124 - VIGORTRONIX PCB footprint - Other - Other - VTX-214-010-124-1
click to zoom
3D Models
VTX-214-010-124 - VIGORTRONIX  - 3D model - Other - VTX-214-010-124-1
click to zoom

VTX-214-010-124 Details

  • Manufacturer Part Number:

    VTX-214-010-124

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-4

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vigortronix (UK) Ltd

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE
