For optimal performance, it is recommended to follow the PCB layout guidelines provided in the datasheet, including keeping the thermal pad connected to a solid ground plane, using a thermal relief pattern, and ensuring good airflow around the device. Additionally, consider using thermal interface materials and heat sinks to further improve thermal management.
The VUB160-16NOXT is designed to handle high-frequency switching conditions, but it's essential to consider the device's switching losses, thermal performance, and parasitic inductance. Consult with Littelfuse's application notes and simulation models to ensure the device meets your specific high-frequency switching requirements.
Follow the recommended soldering and assembly procedures outlined in the datasheet, including using a soldering iron with a temperature range of 250°C to 260°C, and ensuring the device is properly aligned and secured to the PCB. Additionally, consider using a reflow oven or wave soldering process for high-volume production.
The VUB160-16NOXT is designed to operate in a wide range of environmental conditions, including high humidity and extreme temperatures. However, it's essential to consider the device's ratings and limitations, and consult with Littelfuse's application notes and reliability data to ensure the device meets your specific environmental requirements.
The VUB160-16NOXT is available in a TO-220 package, and lead times may vary depending on the region and quantity. Consult with Littelfuse's sales team or authorized distributors for the most up-to-date information on package options and lead times.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VUB160-16NOXT Overview

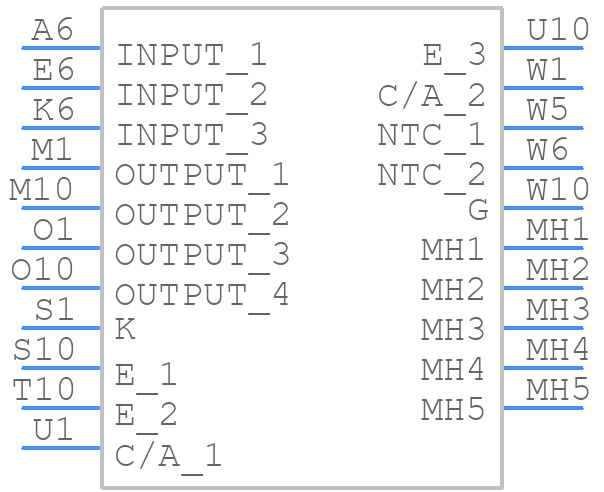

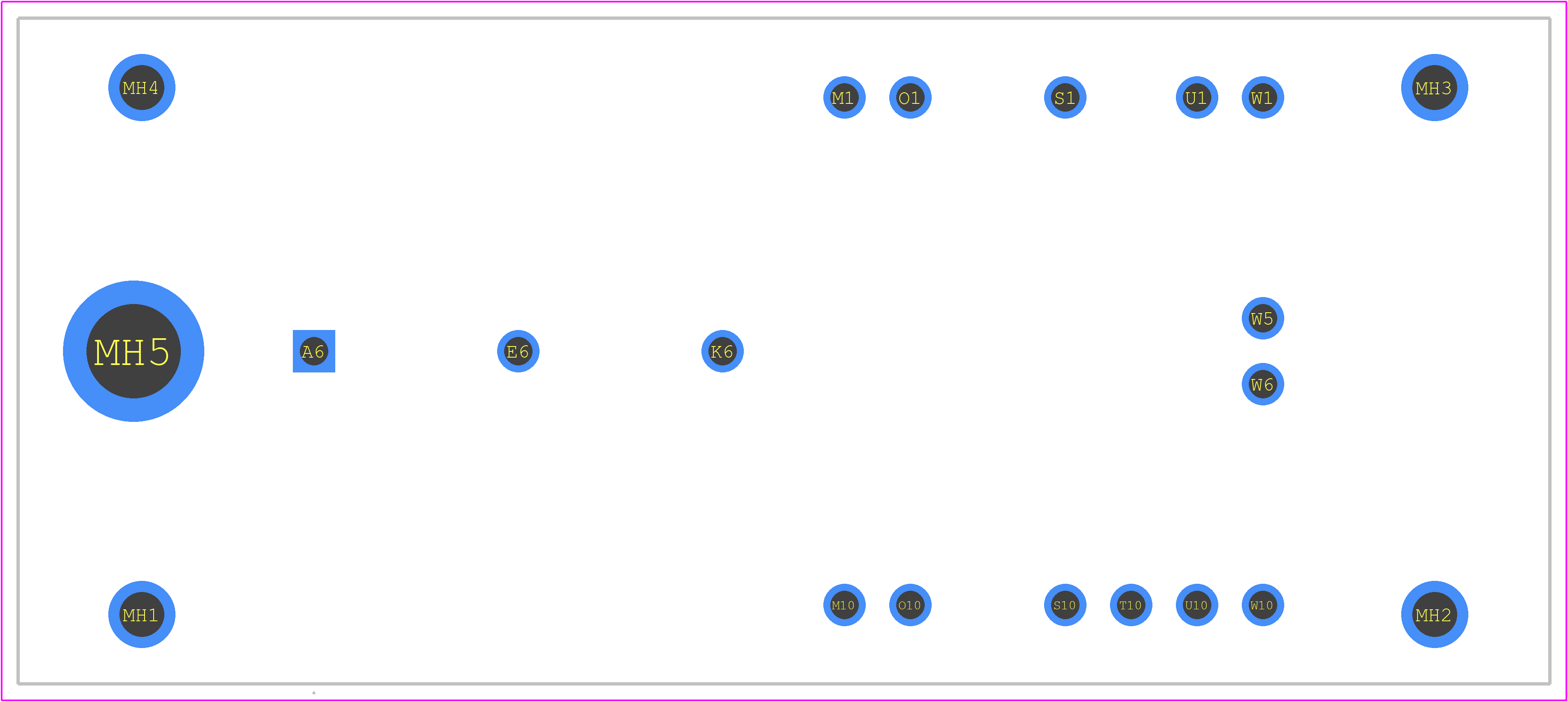

Use the download button to access the VUB160-16NOXT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VUB16,
or try a keyword search, such as Bridge Rectifier Diodes
