VUB72-12NOXT - LITTELFUSE

Description: Module: IGBT; diode/transistor; three-phase diode bridge; Ic:40A

Download VUB72-12NOXT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

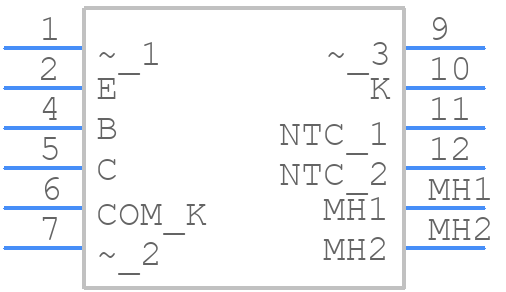

VUB72-12NOXT - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

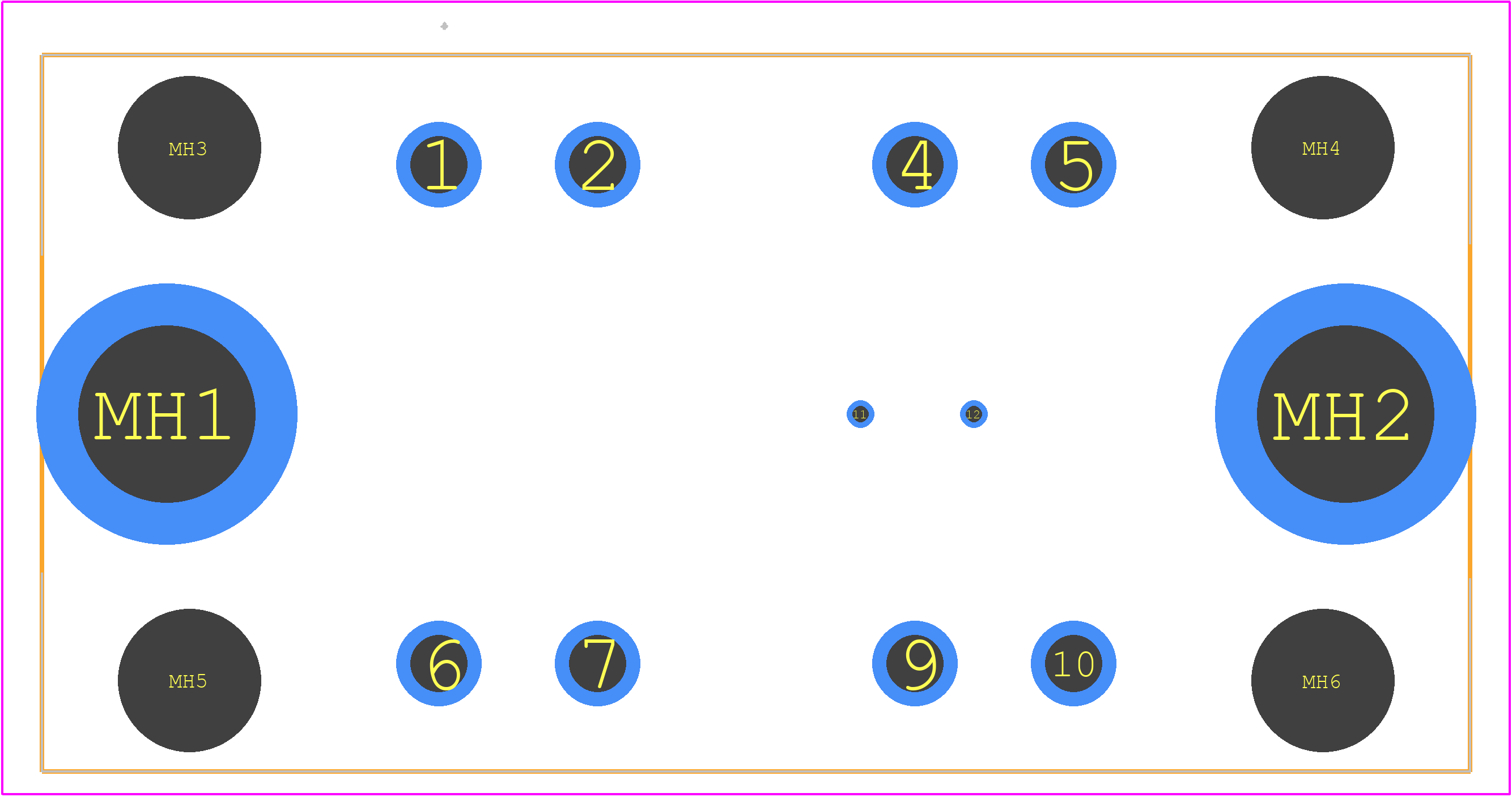

VUB72-12NOXT - LITTELFUSE PCB footprint - Other - Other - VUB72-12NOXT-1
click to zoom
3D Models
VUB72-12NOXT - LITTELFUSE - 3D model - Other - VUB72-12NOXT-1
click to zoom

VUB72-12NOXT Details

  • Manufacturer Part Number:

    VUB72-12NOXT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    0

  • Additional Feature:

    HIGH RELIABILITY

  • Breakdown Voltage-Min:

    1200 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN IGBT AND THERMISTOR

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    R-XUFM-X12

  • Non-rep Pk Forward Current-Max:

    530 A

  • Number of Elements:

    6

  • Number of Phases:

    3

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    40 A

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    1200 V

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

VUB72-12NOXT Frequently Asked Questions (FAQs)

  • The recommended mounting torque is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in) to ensure proper connection and prevent damage to the device.
  • While the device is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
  • Follow the recommended soldering profile, use a solder with a melting point above 217°C, and ensure the soldering iron is set to 250°C to 270°C to prevent damage to the device.
  • The device can handle surge currents up to 100 A for 10 ms, but it's essential to consider the specific application and ensure the device is properly sized to handle the expected surge currents.
  • While the device is designed to withstand vibrations, it's crucial to consider the specific vibration profile and ensure the device is properly secured to the PCB to prevent damage or disconnection.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VUB72-12NOXT Overview

Use the download button to access the VUB72-12NOXT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VUB72, or try a keyword search, such as Bridge Rectifier Diodes
