VUE75-12NO7 - LITTELFUSE

Description: Bipolar Module-Bridge Rectifier ECO-PAC1, Series Fast Three Phase Bridges, Non-repetitive 1200V(max), 74 A (max), 250 µA, 1 mA , Forward Voltage drop 2.71V to 3.65V -40°C to +125°C

Download VUE75-12NO7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VUE75-12NO7 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

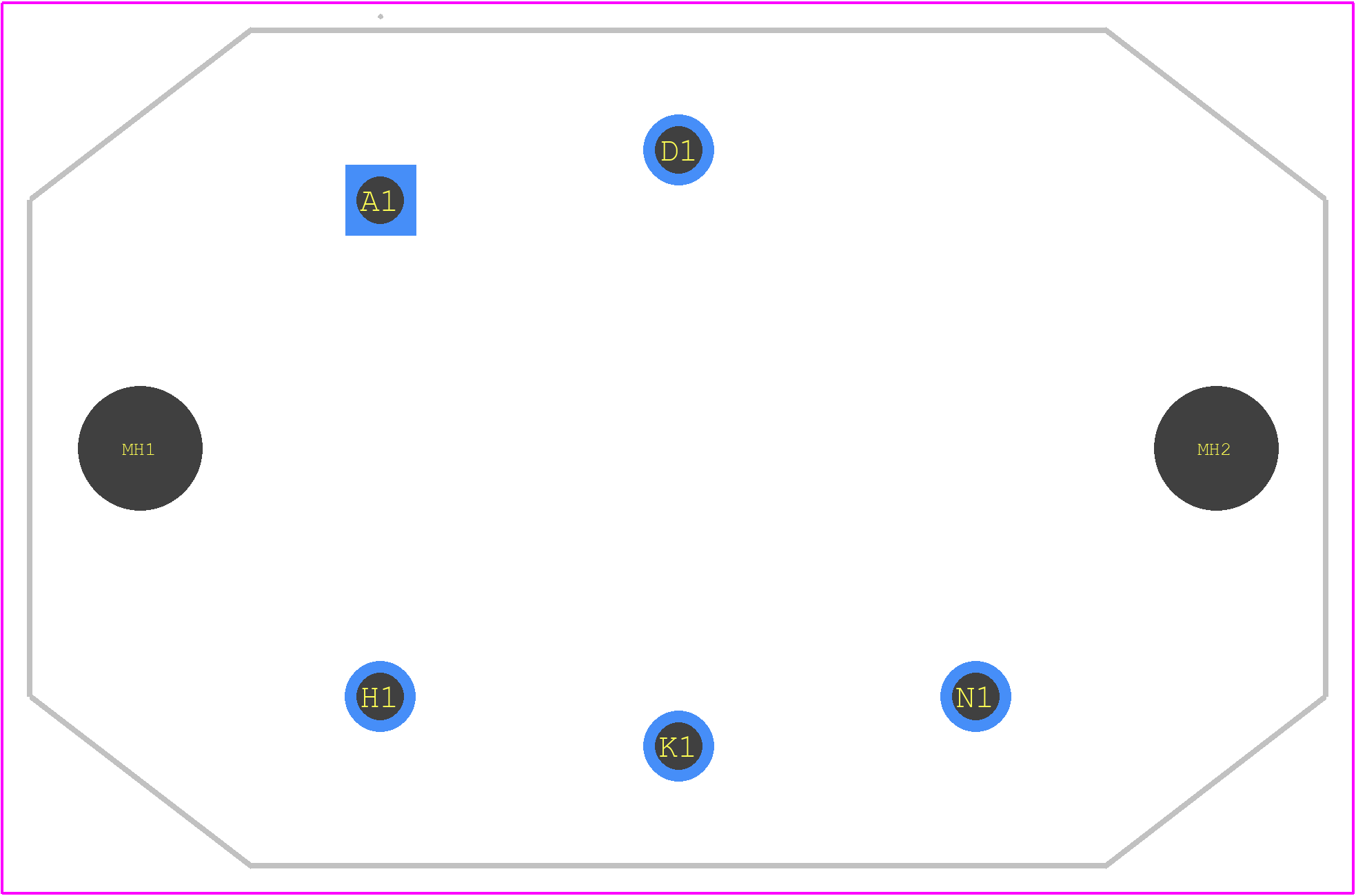

VUE75-12NO7 - LITTELFUSE PCB footprint - Other - Other - VUE75-12NO7-1
click to zoom
3D Models
VUE75-12NO7 - LITTELFUSE - 3D model - Other - VUE75-12NO7-1
click to zoom

VUE75-12NO7 Details

  • Manufacturer Part Number:

    VUE75-12NO7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.95

  • Additional Feature:

    LOW NOISE

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 6 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    2.71 V

  • JESD-30 Code:

    R-XUFM-P5

  • JESD-609 Code:

    e4

  • Non-rep Pk Forward Current-Max:

    190 A

  • Number of Elements:

    6

  • Number of Phases:

    3

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    74 A

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    1200 V

  • Reverse Recovery Time-Max:

    0.04 µs

  • Surface Mount:

    NO

  • Terminal Finish:

    GOLD OVER NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UPPER

VUE75-12NO7 Frequently Asked Questions (FAQs)

  • Littelfuse recommends a PCB layout with a solid ground plane, minimal lead lengths, and a heatsink for high-power applications. A 2-ounce copper PCB is also recommended for optimal thermal performance.
  • While the VUE75-12NO7 is rated for operation up to 150°C, it's essential to consider derating the device's current rating and ensuring proper heat sinking to prevent thermal runaway. Consult Littelfuse's application notes for guidance on high-temperature operation.
  • Follow Littelfuse's recommended soldering profile, which includes a peak temperature of 260°C and a dwell time of 10-30 seconds. Ensure the PCB is clean and free of oxidation, and use a solder with a melting point above 180°C.
  • Littelfuse recommends using a fuse with a rating of 1.5-2 times the maximum current rating of the VUE75-12NO7. This ensures the fuse blows before the device is damaged in the event of an overcurrent condition.
  • Yes, but with caution. Parallel configuration can increase current handling, but it also increases the risk of thermal runaway and uneven current distribution. Ensure each device has its own heat sink and follow Littelfuse's application notes for parallel configuration guidelines.
