A 2-layer or 4-layer PCB with a thermal relief pattern and a large copper area for heat dissipation is recommended. The device should be placed near a heat sink or a thermal pad.
Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout. Also, consider derating the device's current rating at high temperatures.
The device can withstand voltage transients up to 1.5 times the maximum rated voltage for a duration of 100 ms. However, it's recommended to use a TVS diode or a voltage clamp to protect the device from voltage spikes.
Yes, but it's essential to ensure that the devices are matched in terms of their electrical characteristics, and the PCB layout is designed to minimize current imbalance and thermal mismatch.
Use an ESD wrist strap or mat during handling, and ensure that the device is stored in an anti-static bag or container. Also, consider adding ESD protection devices, such as TVS diodes, in the circuit.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W06M Overview

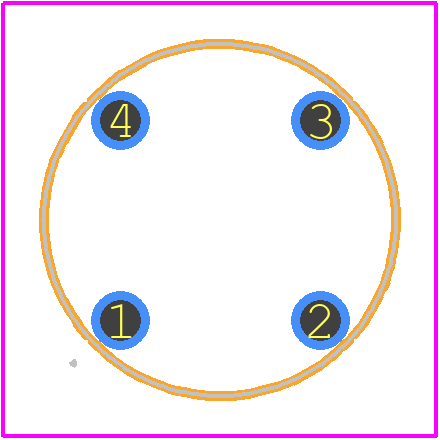

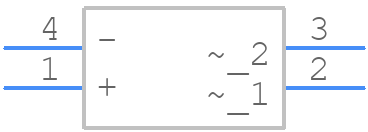

Use the download button to access the W06M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Bridge Rectifier Diodes
