Technical Content
Part Image

W06M - Rectron

Description: Bridge Rectifiers WOM 1.5A 600V Bridge

Download W06M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
W06M - Rectron - PCB symbol
click to zoom

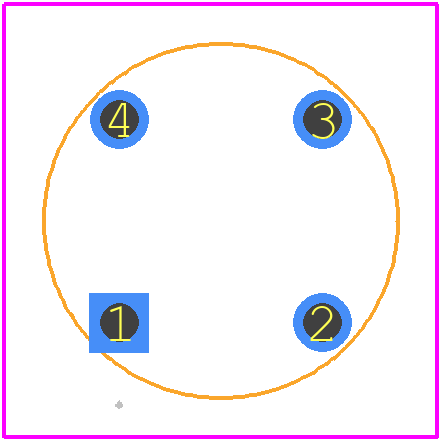

PCB Footprints
W06M - Rectron PCB footprint - Other - Other - W06M-2
click to zoom
3D Models
W06M - Rectron - 3D model - Other - W06M-2
click to zoom

W06M Details

  • Manufacturer Part Number:

    W06M

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, WOM, 4 PIN

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Rectron Semiconductor

  • YTEOL:

    0

  • Breakdown Voltage-Min:

    600 V

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1 V

  • JESD-30 Code:

    O-PBCY-W4

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    50 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    600 V

  • Reverse Current-Max:

    0.00001 µA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    10

W06M Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the W06M is -55°C to 150°C.
  • Yes, the W06M is suitable for high-frequency switching applications up to 100 kHz due to its low switching times and high current capability.
  • To ensure proper biasing for linear operation, the W06M requires a base-emitter voltage (VBE) of around 0.7V and a collector-emitter voltage (VCE) of at least 1V. Additionally, the base current should be limited to prevent overheating.
  • To minimize thermal resistance, it is recommended to use a large copper area for the collector pin, and to place the transistor close to a heat sink or thermal pad. A thermal via or thermal relief pattern can also be used to improve heat dissipation.
  • The W06M has a maximum collector-emitter voltage rating of 60V, so it is not suitable for high-voltage applications above 60V. However, it can be used in applications with lower voltage requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

W06M Overview

Use the download button to access the W06M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Bridge Rectifier Diodes
