W24257AK-20 - Winbond

Description: Static RAM, 32Kx8, 28 Pin, Plastic, DIP

Download W24257AK-20 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W24257AK-20 model

Email notifications will be applied after download.

Send part feedback

Symbol

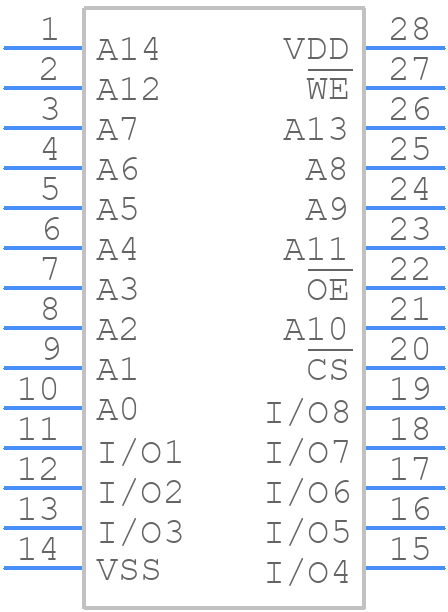

W24257AK-20 - Winbond - PCB symbol

PCB Footprints

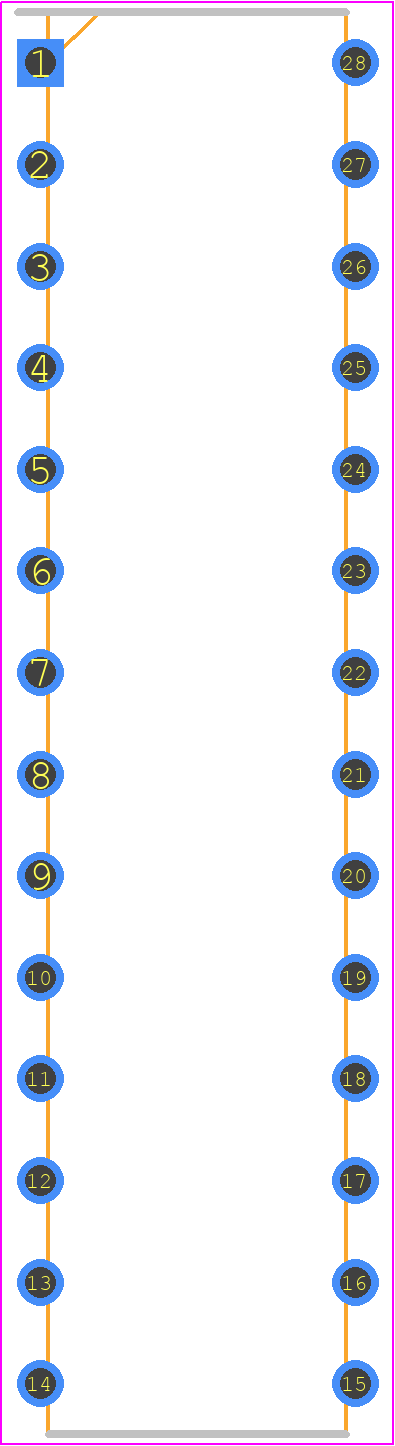

W24257AK-20 - Winbond PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-PIN PDIP SKINNY

3D Models

W24257AK-20 - Winbond - 3D model - Dual-In-Line Packages - 28-PIN PDIP SKINNY

Datasheet Download Datasheet
Stock & Prices Price & Stock for W24257AK-20
Part Number W24257AK-20
Manufacturer Winbond
Pin Count 28
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 28-PIN PDIP SKINNY
Released Date Mar 4, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

W24257AK-20 Details

Manufacturer Part Number:
W24257AK-20
Manufacturer:
Winbond Electronics Corp

Trust Checks

Community Provided

System Verified

Community Approved

W24257AK-20 Overview

Use the download button to access the W24257AK-20 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like W2425, or try a keyword search, such as SRAMs
