W24512AK-15 - Winbond

W24512AK-15 Details

• Manufacturer Part Number:

  W24512AK-15

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

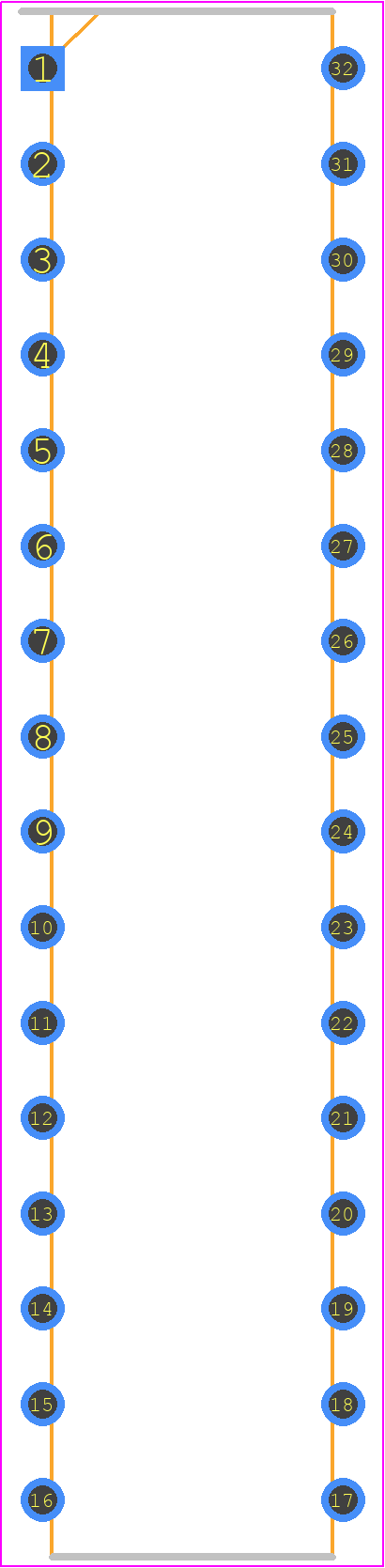

  0.300 INCH, SKINNY, PLASTIC, DIP-32

• Pin Count:

  32

• ECCN Code:

  3A991.b.2.b

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Winbond Electronics Corp

• YTEOL:

  0

• Access Time-Max:

  15 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PDIP-T32

• JESD-609 Code:

  e0

• Length:

  40.64 mm

• Memory Density:

  524288 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  32

• Number of Words:

  65536 words

• Number of Words Code:

  64000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  64KX8

• Output Characteristics:

  3-STATE

• Output Enable:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP32,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Standby Current-Max:

  0.01 A

• Standby Voltage-Min:

  4.5 V

• Supply Current-Max:

  0.2 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
