W25M512JVESM - Winbond

Description: 512Mb Serial NOR Flash 104MHz SON8 2.7V - 3.6V -40℃ ~ 85℃ / -40℃ ~ 105℃ / -40℃ ~ 125 WSON8 8X6mm

Download W25M512JVESM Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W25M512JVESM model

Email notifications will be applied after download.

Send part feedback

Symbol

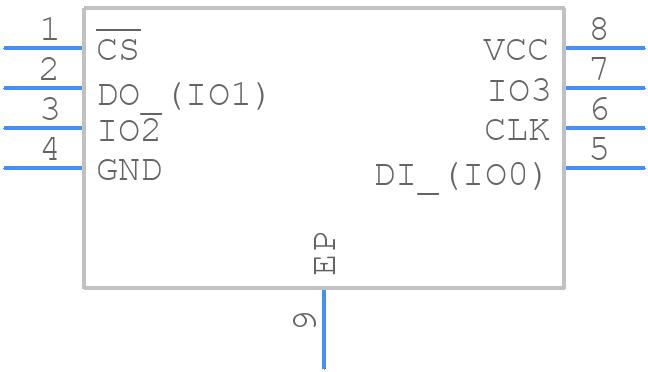

W25M512JVESM - Winbond - PCB symbol

PCB Footprints

W25M512JVESM - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)

3D Models

W25M512JVESM - Winbond - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)

Datasheet Download Datasheet
Stock & Prices Price & Stock for W25M512JVESM
Part Number W25M512JVESM
Manufacturer Winbond
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
Released Date Jul 18, 2024
Last Modified Date Jul 18, 2024 3:02 AM UTC
Pinout / Pin List Click Here (Member Only)

W25M512JVESM Details

Manufacturer Part Number:
W25M512JVESM
Manufacturer:
Winbond Electronics Corp

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

W25M512JVESM Overview

Use the download button to access the W25M512JVESM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like W25M5, or try a keyword search, such as Flash Memories
