W25M512JWBIQ - Winbond

Description: 512Mb SpiStack Flash 104MHz TFBGA (5X5)24

Download W25M512JWBIQ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W25M512JWBIQ model

Email notifications will be applied after download.

Send part feedback

Symbol

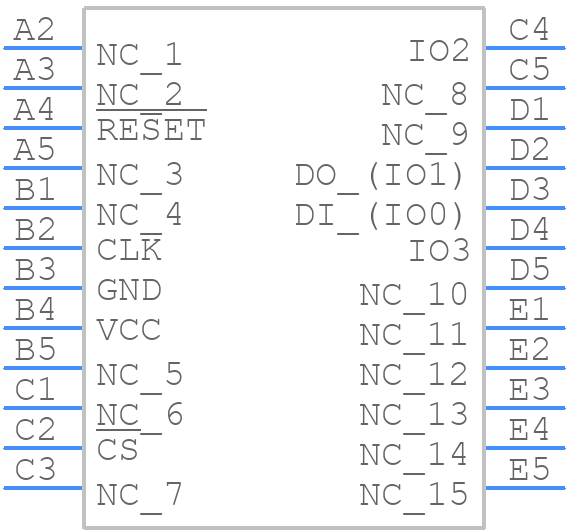

W25M512JWBIQ - Winbond - PCB symbol

PCB Footprints

W25M512JWBIQ - Winbond PCB footprint - BGA - BGA - 24-Ball TFBGA 8x6-mm (Package Code B, 5x5-1 Ball Array) -

3D Models

W25M512JWBIQ - Winbond - 3D model - BGA - 24-Ball TFBGA 8x6-mm (Package Code B, 5x5-1 Ball Array) -

Datasheet Download Datasheet
Stock & Prices Price & Stock for W25M512JWBIQ
Part Number W25M512JWBIQ
Manufacturer Winbond
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24-Ball TFBGA 8x6-mm (Package Code B, 5x5-1 Ball Array) -
Released Date Jul 17, 2024
Last Modified Date Jul 17, 2024 1:05 PM UTC
Pinout / Pin List Click Here (Member Only)

W25M512JWBIQ Details

Manufacturer Part Number:
W25M512JWBIQ
Manufacturer:
Winbond Electronics Corp
