W25M512JWCIQ - Winbond

Description:  New Family of SpiFlash® Memories – W25M512JW-IQ: 2 x 256M-bit (2 x 32MByte) – Standard SPI: CLK, /CS, DI, DO – Dual SPI: CLK, /CS, IO0, IO1 – Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 – 3 or 4-Byte Addressing Mode – Software Die Select (C2h) – Software & Hardware Reset(1)  High Performance Serial Flash – 104MHz Standard/Dual/Quad SPI clocks – 208/416MHz equivalent Dual/Quad SPI – 52MB/s continuous data transfer rate – More than 100,000 Program/Erase cycles – More than 20-year data retention 

Download W25M512JWCIQ Model
Schematic

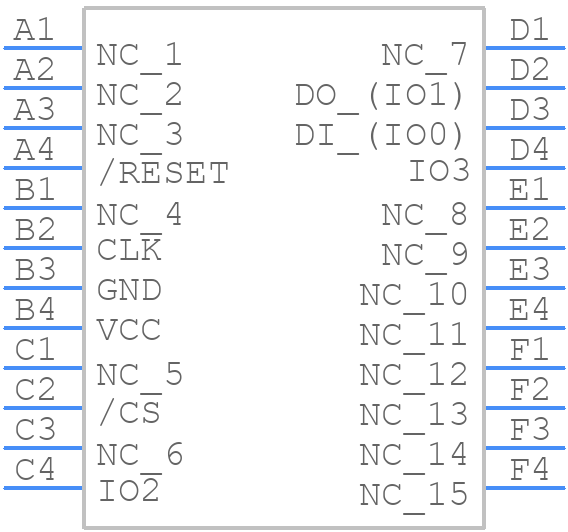

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25M512JWCIQ - Winbond PCB footprint - BGA - BGA - 24-Ball TFBGA 8x6-mm (Package Code C, 6x4 Ball Array)
click to zoom
3D Models
W25M512JWCIQ - Winbond  - 3D model - BGA - 24-Ball TFBGA 8x6-mm (Package Code C, 6x4 Ball Array)
click to zoom

W25M512JWCIQ Details

  • Manufacturer Part Number:

    W25M512JWCIQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2018-10-01

  • Manufacturer:

    Winbond Electronics Corp

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PBGA-B24

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE
