W25M512JWESQ - Winbond

Description: FLASH - NOR Memory IC 512Mbit SPI 104 MHz 8-WSON (8x6)

Download W25M512JWESQ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W25M512JWESQ model

Email notifications will be applied after download.

Send part feedback

Symbol

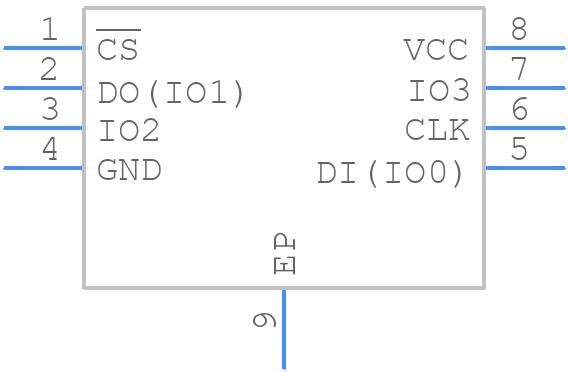

W25M512JWESQ - Winbond - PCB symbol

PCB Footprints

W25M512JWESQ - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)

3D Models

W25M512JWESQ - Winbond - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)

Datasheet Download Datasheet
Stock & Prices Price & Stock for W25M512JWESQ
Part Number W25M512JWESQ
Manufacturer Winbond
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
Released Date Jul 18, 2024
Last Modified Date Jul 18, 2024 9:56 AM UTC
