The W25N02KVSFIR has a minimum of 100,000 erase cycles per sector, and a total of 2,000,000 erase cycles for the entire device.
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
The recommended clock frequency for the W25N02KVSFIR is up to 104 MHz. However, it's recommended to check the specific clock frequency requirements for your application and ensure that it's within the specified range.
The WP# pin is used to enable or disable write protection for the status register. To enable write protection, connect WP# to VCC. To disable write protection, connect WP# to GND.
The deep power-down mode is used to reduce power consumption to a minimum. In this mode, the device is in a low-power state, and all commands are ignored. It's typically used in battery-powered applications where power consumption needs to be minimized.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
W25N02KVSFIR Overview

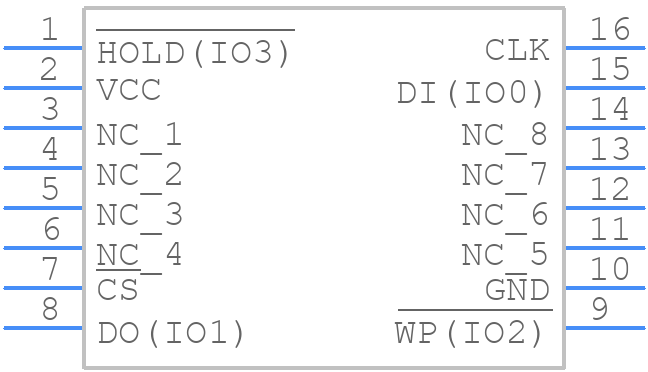

Use the download button to access the W25N02KVSFIR schematic symbol, PCB footprint, and 3D model.
