W25N02KVZEIR - Winbond

Description: NAND Flash 2G-bit Serial NAND flash, 3V

Download W25N02KVZEIR Model

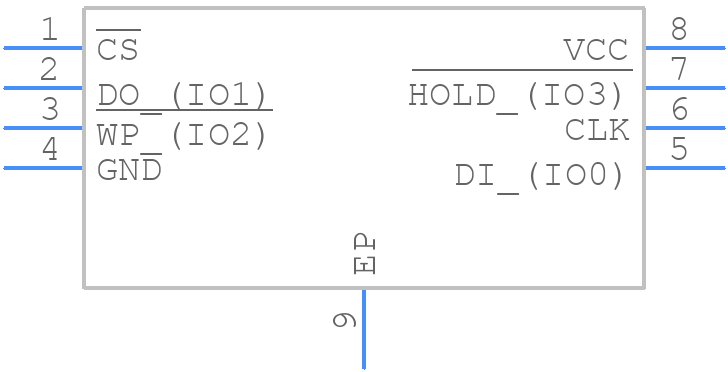

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N02KVZEIR - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code ZE)
click to zoom
3D Models
W25N02KVZEIR - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code ZE)
click to zoom

W25N02KVZEIR Details

  • Manufacturer Part Number:

    W25N02KVZEIR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    104 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    60000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25N02KVZEIR Frequently Asked Questions (FAQs)

  • The W25N02KVZEIR supports up to 100,000 erase cycles.
  • The hold pin (HOLD#) is used to pause the flash memory operation. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal.
  • The optimal clock frequency depends on the specific application and system requirements. The W25N02KVZEIR supports clock frequencies up to 104 MHz. It's recommended to consult the datasheet and application notes for guidance on selecting the optimal clock frequency.
  • The W25N02KVZEIR is rated for operation up to 85°C. Operating the device above the recommended temperature range may affect its reliability and lifespan. It's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.
