W25N512GWEIR - Winbond

Description:  New W25N Family of SpiFlash Memories – W25N512GW: 512M-bit / 64M-Byte – Standard SPI: CLK, /CS, DI, DO, /WP, /Hold – Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold – Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 – Compatible SPI serial flash commands  Highest Performance Serial NAND Flash – 104MHz Standard/Dual/Quad SPI clocks – 208/416MHz equivalent Dual/Quad SPI – 50MB/S continuous data transfer rate – Fast Program/Erase performance – 100,000 erase/program cycles(5) – 10-year data retention  Efficient

Download W25N512GWEIR Model

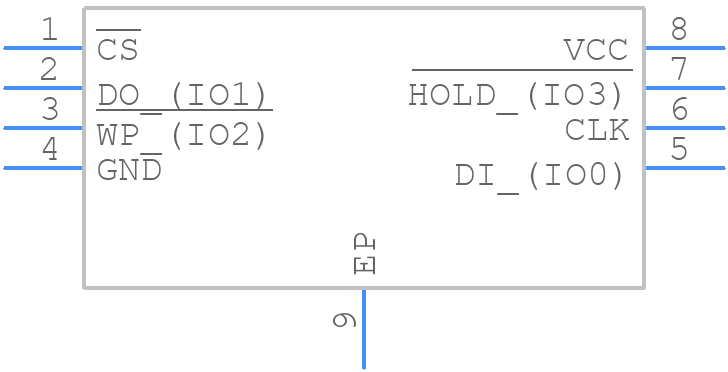

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25N512GWEIR - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
click to zoom
3D Models
W25N512GWEIR - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code E)
click to zoom

W25N512GWEIR Details

  • Manufacturer Part Number:

    W25N512GWEIR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6.3

  • Clock Frequency-Max (fCLK):

    104 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    6 mm

W25N512GWEIR Frequently Asked Questions (FAQs)

  • The W25N512GWEIR has a minimum of 100,000 erase cycles per sector, and a total of 1,000,000 erase cycles for the entire device.
  • The HOLD# pin should be kept high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to tie the HOLD# pin to VCC or use a pull-up resistor to ensure it remains high during these periods.
  • The W25N512GWEIR supports clock frequencies up to 104 MHz, but it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and minimize power consumption.
  • The WP# pin is used to protect the status register from being written. When WP# is low, the status register is write-protected. When WP# is high, the status register can be written. It's recommended to tie the WP# pin to VCC or use a pull-up resistor to enable write protection.
  • The DPD mode is a low-power state that reduces the device's power consumption to a minimum. It's used to conserve power when the device is not in use. The DPD mode can be entered by sending a specific command sequence to the device.
