W25Q01JVZEIM - Winbond

Description: NOR Flash spiFlash, 1G-bit, 4Kb Uniform Sector

Download W25Q01JVZEIM Model

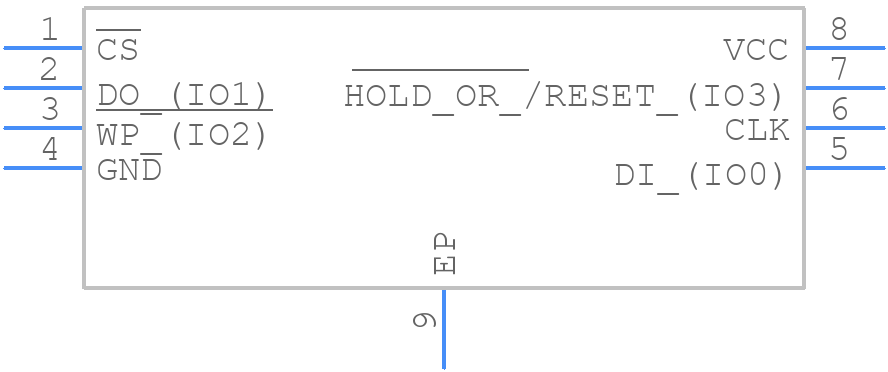

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q01JVZEIM - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code ZE)
click to zoom
3D Models
W25Q01JVZEIM - Winbond  - 3D model - Small Outline No-lead - 8-Pad WSON 8x6-mm (Package Code ZE)
click to zoom

W25Q01JVZEIM Details

  • Manufacturer Part Number:

    W25Q01JVZEIM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00004 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q01JVZEIM Frequently Asked Questions (FAQs)

  • The W25Q01JVZEIM has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a portion of it from being written or erased. When WP# is low, the memory is write-protected.
  • The optimal clock frequency for the W25Q01JVZEIM depends on the specific application and operating conditions. The datasheet recommends a clock frequency of up to 104 MHz, but the actual frequency may need to be adjusted based on the system's signal integrity and noise tolerance.
  • The main difference between the W25Q01JVZEIM and the W25Q01JVZPIQ is the package type. The W25Q01JVZEIM is available in a VFQFPN 8x6mm package, while the W25Q01JVZPIQ is available in a WSON 6x5mm package. Both devices have the same functionality and performance.
