W25Q01NWTBIA - Winbond

Description: 1Gb Serial NOR Flash 133MHz TFBGA (5X5)24

Download W25Q01NWTBIA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this W25Q01NWTBIA model

Email notifications will be applied after download.

Send part feedback

Symbol

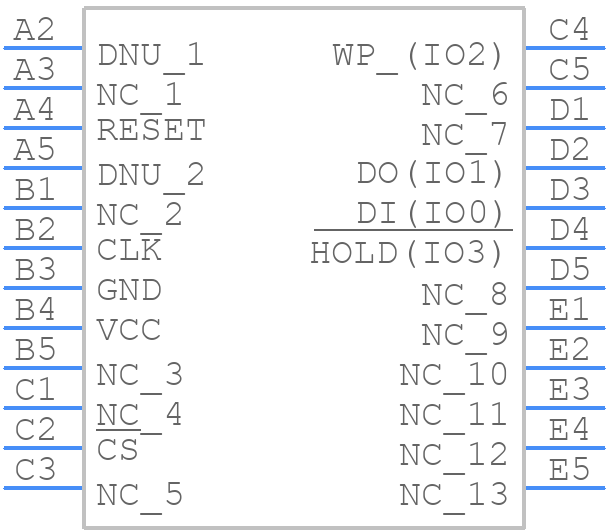

W25Q01NWTBIA - Winbond - PCB symbol

PCB Footprints

W25Q01NWTBIA - Winbond PCB footprint - BGA - BGA - TFBGA (5X5) - 24

3D Models

W25Q01NWTBIA - Winbond - 3D model - BGA - TFBGA (5X5) - 24

Datasheet Download Datasheet
Stock & Prices Price & Stock for W25Q01NWTBIA
Part Number W25Q01NWTBIA
Manufacturer Winbond
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - TFBGA (5X5) - 24
Released Date Jul 21, 2024
Last Modified Date Jul 21, 2024 11:22 AM UTC
Pinout / Pin List Click Here (Member Only)

W25Q01NWTBIA Details

Manufacturer Part Number:
W25Q01NWTBIA
Manufacturer:
Winbond Electronics Corp

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

W25Q01NWTBIA Overview

Use the download button to access the W25Q01NWTBIA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like W25Q0, or try a keyword search, such as Flash Memories
