W25Q128JVBIQ - Winbond

Description: 128M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI

Download W25Q128JVBIQ Model
Schematic

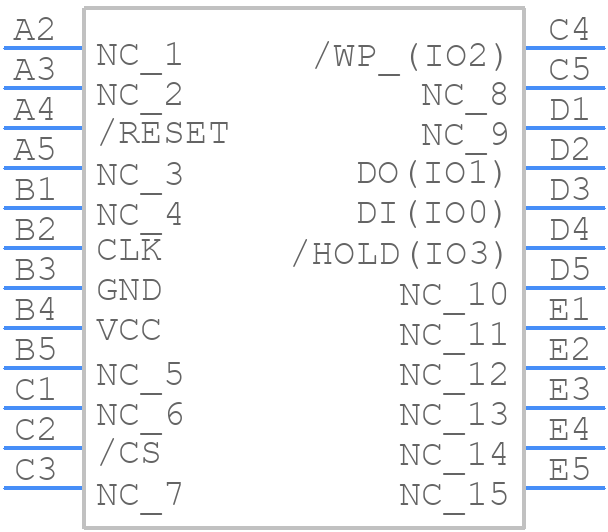

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q128JVBIQ - Winbond PCB footprint - BGA - BGA - W25Q128JVBIQ
click to zoom
3D Models
W25Q128JVBIQ - Winbond  - 3D model - BGA - W25Q128JVBIQ
click to zoom

W25Q128JVBIQ Details

  • Manufacturer Part Number:

    W25Q128JVBIQ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q128JVBIQ Frequently Asked Questions (FAQs)

  • The W25Q128JVBIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The recommended clock frequency for the W25Q128JVBIQ is up to 104 MHz, but it can operate at frequencies up to 133 MHz in fast mode.
  • The W25Q128JVBIQ has a write protection mechanism that can be implemented using the WP# pin. To enable write protection, pull the WP# pin low, and to disable it, pull the WP# pin high.
  • The deep power-down mode is a low-power state that reduces the power consumption of the device to a minimum. It is useful for battery-powered devices or applications where power consumption needs to be minimized.
