W25Q128JVPIM - Winbond

Description: 128M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI

Download W25Q128JVPIM Model

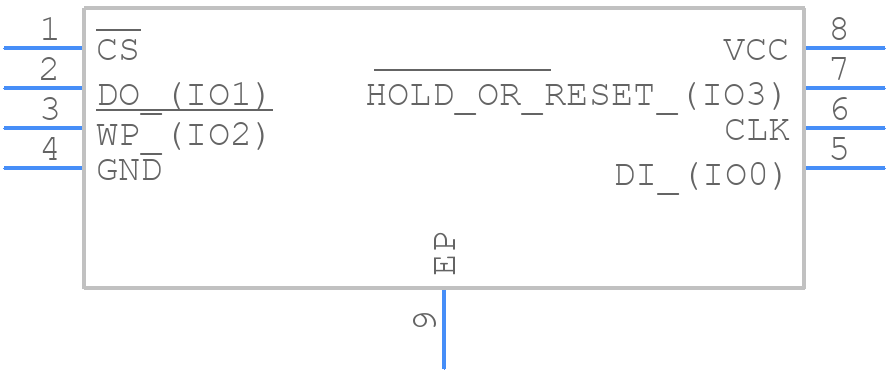

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q128JVPIM - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - 10.2 8-Pad WSON 6x5-mm (Package Code P)
click to zoom
3D Models
W25Q128JVPIM - Winbond  - 3D model - Small Outline No-lead - 10.2 8-Pad WSON 6x5-mm (Package Code P)
click to zoom

W25Q128JVPIM Details

  • Manufacturer Part Number:

    W25Q128JVPIM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    6

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q128JVPIM Frequently Asked Questions (FAQs)

  • The W25Q128JVPIM has a minimum of 100,000 erase cycles per sector, and a maximum of 100,000 to 1,000,000 erase cycles depending on the operating conditions.
  • The HOLD# signal is used to pause the flash memory operation. To use it, pull the HOLD# signal low to pause the operation, and pull it high to resume. Make sure to check the datasheet for the specific timing requirements.
  • The WP# pin is used to prevent accidental writes to the status register. When WP# is low, the status register is write-protected. When WP# is high, the status register can be written to.
  • The optimal clock frequency depends on the specific application and system requirements. The W25Q128JVPIM supports clock frequencies up to 133 MHz. Consult the datasheet and application notes for guidance on selecting the optimal clock frequency.
  • The main difference is the operating temperature range. The W25Q128JVPIM has an operating temperature range of -40°C to 85°C, while the W25Q128JVPIQ has an operating temperature range of -40°C to 125°C.
