W25Q128JWEIQ - Winbond

Description: NOR Flash spiFlash, 128M-bit, 4Kb Uniform Sector

Download W25Q128JWEIQ Model

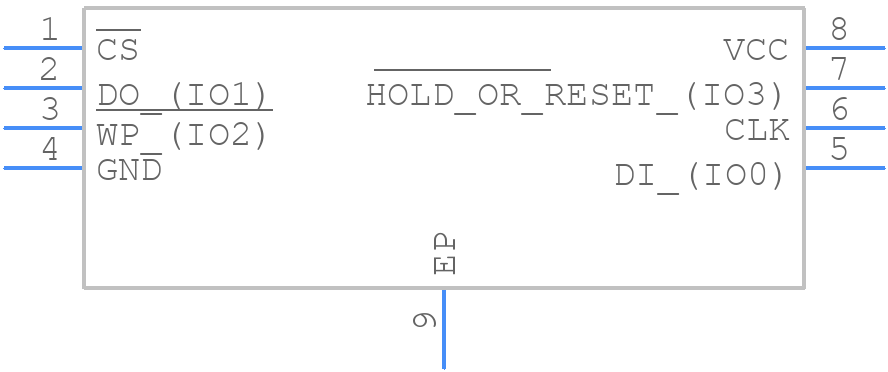

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
W25Q128JWEIQ - Winbond PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON-8 8x6-mm_
click to zoom
3D Models
W25Q128JWEIQ - Winbond  - 3D model - Small Outline No-lead - WSON-8 8x6-mm_
click to zoom

W25Q128JWEIQ Details

  • Manufacturer Part Number:

    W25Q128JWEIQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2019-11-07

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    5.75

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    8 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

W25Q128JWEIQ Frequently Asked Questions (FAQs)

  • The W25Q128JWEIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
  • The hold pin (HOLD#) is used to pause the current operation and allow the host to perform other tasks. To use it, pull the HOLD# pin low to pause the operation, and pull it high to resume the operation.
  • The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a specific sector from being written or erased. When WP# is low, the memory is write-protected.
  • To perform a sector erase, send the sector erase command (0x20) followed by the address of the sector to be erased. The device will then erase the entire sector.
  • The main difference is the package type: the W25Q128JWEIQ is a 208-ball BGA package, while the W25Q128JVSIQ is a 24-ball VSOP package. Both devices have the same functionality and performance.
